- Country
- United States of America (USA)
- Manufacturer / Brand
- Bogen (-Presto), David Co., Inc.; New York, NY / Paramus, NJ
- Year
- 1953 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 149624

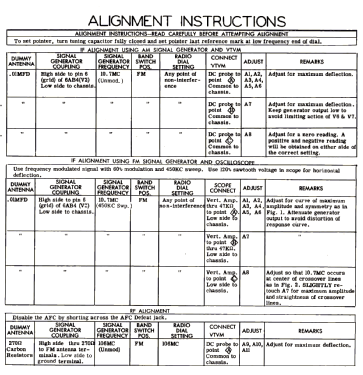

Picture from service manual.
Sams Photofact Folders

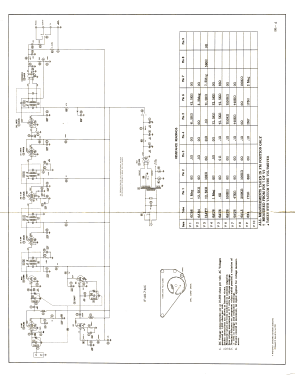

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 10700 kHz
- Tuned circuits
- 11 FM circuit(s)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: FM801 - Bogen -Presto, David Co., Inc.
- Shape
- Chassis only or for «building in»
- Notes
-
The Bogen Model FM801 is an AC operated FM Superheterodyne Tuner for Custom Installations.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 3-53, Set 198, Folder 4)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
