- Country
- United States of America (USA)
- Manufacturer / Brand
- Bogen (-Presto), David Co., Inc.; New York, NY / Paramus, NJ
- Year
- 1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 179262
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 10700 kHz
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles 105-125 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

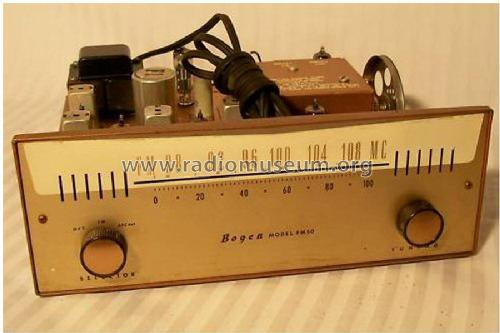

- Model: FM-50 - Bogen -Presto, David Co., Inc.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 300 x 105 x 260 mm / 11.8 x 4.1 x 10.2 inch
- Notes
-
AC Operated FM Superheterodyne Tuner.
- Net weight (2.2 lb = 1 kg)
- 3 kg / 6 lb 9.7 oz (6.608 lb)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 337 Folder 4 Dated 11-56)
- Author
- Model page created by Günter Rother. See "Data change" for further contributors.
