H30

H30 ; Bogen, David Co., (ID = 582513) Ampl/Mixer

H30 ; Bogen, David Co., (ID = 582514) Ampl/Mixer

H30 ; Bogen, David Co., (ID = 582515) Ampl/Mixer

H30 ; Bogen, David Co., (ID = 582516) Ampl/Mixer
H30 ; Bogen, David Co., (ID = 582512) Ampl/Mixer H30 ; Bogen, David Co., (ID = 1976812) Ampl/Mixer
H30 ; Bogen, David Co., (ID = 1976813) Ampl/Mixer
Use red slider bar for more.
H30 ; Bogen, David Co., (ID = 582512) Ampl/Mixer
Bogen, David Co.,: H30 [Ampl/Mixer] ID = 582512 700x567
Select picture or schematic to display from thumbnails on the right and click for download.
For model H30, Bogen, David Co., Inc.; New York (NY):
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1949 Category: Audio Amplifier or -mixer
Valves / Tubes 7: 6SF5 6SF5 6SF5 6SL7GT 6L6G 6L6G 5U4G
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 50-60 cycles, 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out 30 W (40 W max.)
from Radiomuseum.org Model: H30 - Bogen, David Co., Inc.; New
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 15.5 x 7.5 x 11 inch / 394 x 191 x 279 mm
Notes

The Bogen Model H30 is an AC operated PA Amplifier; inputs: 2x Microphone + Phonograph.

Price in first year of sale 120.75 USD

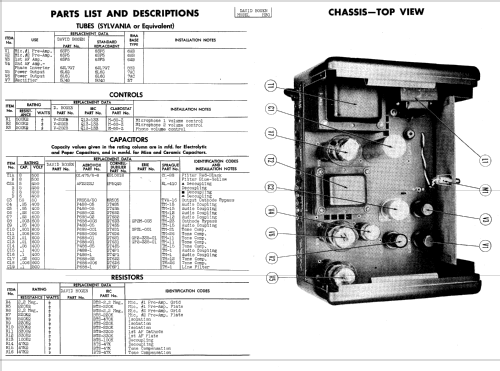

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 12-48, Set 79, Folder 5)
Literature/Schematics (2) Radio Master's Catalog, 15th ed., 1950-51, pg. B-26.

Model page created by Egon Penker. See "Data change" for further contributors.
