Mobile System H623

Mobile System H623; Bogen, David Co., (ID = 1431834) R-Player

Mobile System H623; Bogen, David Co., (ID = 1431835) R-Player

Mobile System H623; Bogen, David Co., (ID = 1431836) R-Player

Mobile System H623; Bogen, David Co., (ID = 1431838) R-Player
Mobile System H623; Bogen, David Co., (ID = 1431772) R-Player
Use red slider bar for more.
Mobile System H623; Bogen, David Co., (ID = 1431772) R-Player
Bogen, David Co.,: Mobile System H623 [R-Player] ID = 1431772 930x842
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mobile System H623, Bogen, David Co., Inc.; New York (NY):

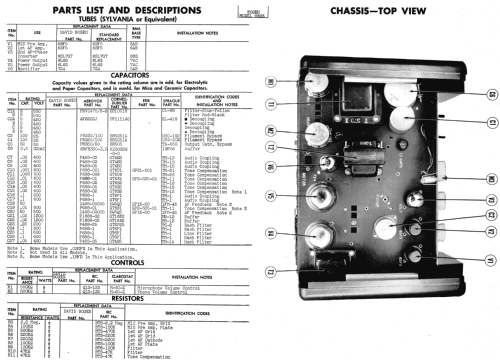

Sams_Photofact_Set71_Folder8

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1949 Category: Sound/Video Recorder and/or Player
Valves / Tubes 6: 6SF5 6SF5 6SL7GT 6L6G 6L6G 7Z4
Main principle Audio-Amplification
Wave bands - without
Details Record Player (not changer)
Power type and voltage Line / Batteries (any type) / Either Battery: 1 x 6 V or AC: 60 cycles, 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out 23 W (30 W max.)
from Radiomuseum.org Model: Mobile System H623 - Bogen, David Co., Inc.; New
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 15.25 x 10.125 x 10.875 inch / 387 x 257 x 276 mm
Notes

Bogen H 623 is an AC or battery operated Audio Amplifier & Record Player.
Power supply: 110-120 Volts AC or 6 Volts Storage Battery.
Rating: .77 Amp. @ 117 Volts AC or 14 Amp. @ 6 Volts DC.

Price in first year of sale 186.25 USD
Mentioned in Photofact Folder, Howard W. SAMS (Date 10/49, Set 71, Folder 8)
Literature/Schematics (1) Radio Master's Catalog, 15th ed., 1950-51, pg. B-27.

Model page created by Klaus Gordziel. See "Data change" for further contributors.
