For model Mobile System HX-632, Bogen, David Co., Inc.; New York (NY):
Sams photofact set169 folder 5 date 6-52.

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1950 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 7: 6SF5 6SF5 6SL7GT 6SL7GT 6L6G 6L6G 5U4G
Main principle Audio-Amplification
Wave bands - without
Details Record Player (not changer)
Power type and voltage Line / Storage batteries (perhaps also batteries) / Either Battery: 1 x 6 V or AC: 60 cycles, 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out 32 W (40 W max.)
from Radiomuseum.org Model: Mobile System HX-632 - Bogen, David Co., Inc.; New
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 16.375 x 10.625 x 16 inch / 416 x 270 x 406 mm
Notes AC or battery operated 3 channel audio amplifier with manual record player.
Vibrator for +B.
Price in first year of sale 262.50 USD

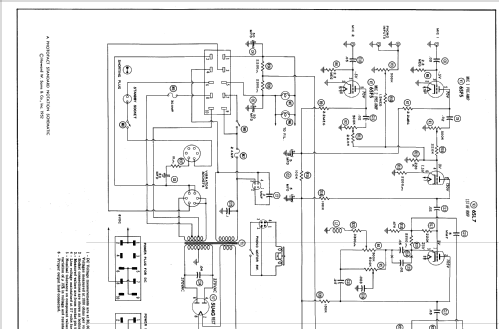

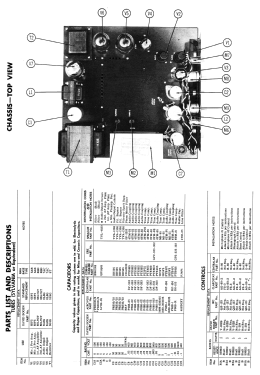

Literature/Schematics (1) Photofact Folder, Howard W. SAMS ((Set 169 folder 5 date 6-52 title))
Literature/Schematics (2) Radio Master's Catalog, 15th ed., 1950-51, pg. B-27.

Model page created by Peter Hoddow. See "Data change" for further contributors.
