K15Y

K15Y ; Bogen, David Co., (ID = 763691) Ampl/Mixer

K15Y ; Bogen, David Co., (ID = 763692) Ampl/Mixer

K15Y ; Bogen, David Co., (ID = 763693) Ampl/Mixer

K15Y ; Bogen, David Co., (ID = 763694) Ampl/Mixer
Use red slider bar for more.
K15Y ; Bogen, David Co., (ID = 763691) Ampl/Mixer
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1958 Category: Audio Amplifier or -mixer
Valves / Tubes 6: 12AX7 12AX7 6AV6 6L6GB 6L6GB 6AX5GT
Main principle Audio-Amplification
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: K15Y - Bogen, David Co., Inc.; New
Material Metal case
Shape Tablemodel, low profile (big size).
Notes The David Bogen Model K15Y is an AC Operated 6 Tube 15 Watt Audio Amplifier with 3 Speed Manual Record Player.

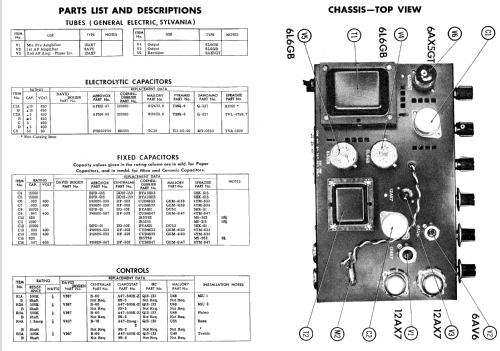

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 11-58, Set 420, Folder 4)

Model page created by Egon Penker. See "Data change" for further contributors.
