For model K1630Y, Bogen, David Co., Inc.; New York (NY):
Sams Photofact Folders reference picture.

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1958 Category: Audio Amplifier or -mixer
Valves / Tubes 8: 12AX7 6AV6 6U8A 6AV5GA 6AV5GA 6CG7 6AX5GT 6AX5GT
Main principle Audio-Amplification
Wave bands - without
Details Record Player (not changer)
Power type and voltage Line / Batteries (any type) / 110 - 120 / 6 / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: K1630Y - Bogen, David Co., Inc.; New
Material Metal case
Shape Tablemodel, with any shape - general.
Notes The Bogen Model K1630Y is an AC or Battery operated 8 tube, 3 Channel, 30 Watt Audio Amplifier with Record Player. Vibrators for 6 and 12V Storage Battery.

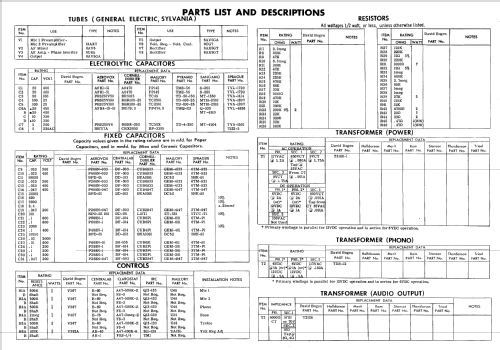

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 1-59, Set 426, Folder 7)

Model page created by Egon Penker. See "Data change" for further contributors.
