For model KO100, Bogen, David Co., Inc.; New York (NY):
aus ebay, #251079020734, Verkäufer hombrec

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1958 Category: Audio Amplifier or -mixer
Valves / Tubes 6: 6U8 EL34 EL34 5R4GYA 5R4GYA EZ81
Semiconductors (the count is only for transistors) Selenium-Rectifier
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker - This model requires external speaker(s).
Power out 100 W (unknown quality)
from Radiomuseum.org Model: KO100 - Bogen, David Co., Inc.; New
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 17 x 6 x 6 inch / 432 x 152 x 152 mm
Notes The David Bogen Model KO100 is an AC operated 6 Tube 100 Watt Audio Amplifier.

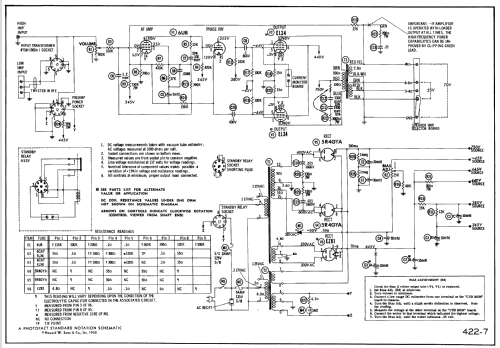

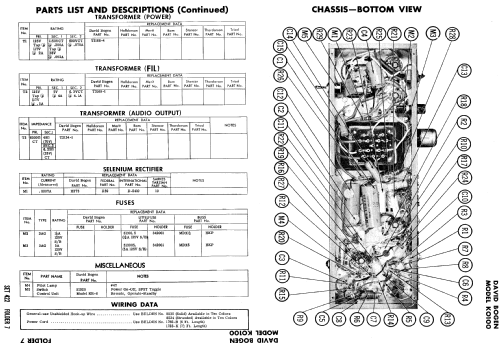

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 11-58, Set 422, Folder 7)

Model page created by Egon Penker. See "Data change" for further contributors.
