E75; Bogen, David Co., (ID = 1567480) Ampl/Mixer

E75; Bogen, David Co., (ID = 1567481) Ampl/Mixer

E75; Bogen, David Co., (ID = 1567482) Ampl/Mixer

E75; Bogen, David Co., (ID = 1567483) Ampl/Mixer

E75; Bogen, David Co., (ID = 1567484) Ampl/Mixer

E75; Bogen, David Co., (ID = 1567485) Ampl/Mixer
E75; Bogen, David Co., (ID = 1567479) Ampl/Mixer
Use red slider bar for more.
E75; Bogen, David Co., (ID = 1567479) Ampl/Mixer
Bogen, David Co.,: E75 [Ampl/Mixer] ID = 1567479 933x623
Select picture or schematic to display from thumbnails on the right and click for download.
For model E75, Bogen, David Co., Inc.; New York (NY):

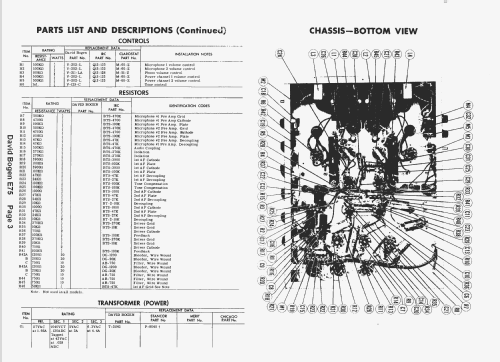

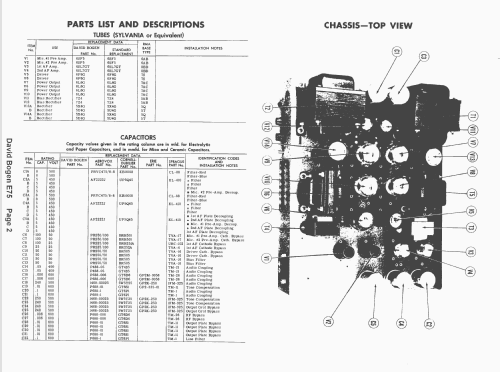

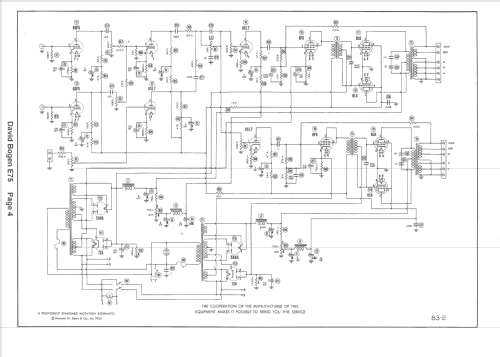

SAMS Photofact Vol.9/50 83-2 Set 83 Folder 2

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1942 Category: Audio Amplifier or -mixer
Valves / Tubes 14: 6SF5 6SF5 6SL7GT 6SL7GT 6F6G 6F6G 7Z4 7Z4 6L6G 6L6G 6L6G 6L6G 5U4G 5U4G
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 50-60 cycles, 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out 70 W (100 W max.)
from Radiomuseum.org Model: E75 - Bogen, David Co., Inc.; New
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 17.125 x 10 x 12.5 inch / 435 x 254 x 318 mm
Notes

The Bogen E75 is a 70 watt amplifier.

Input : Three input channels for 2 mikes and a phono___ Output : Each output channel provides tapped terminals of 4-8-15 250 and 500 ohms Available with choice of microphones and with 4-12 in. P.M.speakers, walnut baffles or with 4 weatherproof reflex trumpets and units.

Price in first year of sale 223.75 USD
Mentioned in Radio Retailing (Radio & Television R.)
Literature/Schematics (1) Radio Master's Catalog, 15th ed., 1950-51, pg. B-25.

Model page created by Heinz Höger. See "Data change" for further contributors.
