Portable Sound System 6 Watt DP 6 VT

Portable Sound System 6 Watt DP 6 VT; Bogen, David Co., (ID = 1394994) Ampl/Mixer Portable Sound System 6 Watt DP 6 VT; Bogen, David Co., (ID = 1394995) Ampl/Mixer
Use red slider bar for more.
Portable Sound System 6 Watt DP 6 VT; Bogen, David Co., (ID = 1394994) Ampl/Mixer
Bogen, David Co.,: Portable Sound System 6 Watt DP 6 VT [Ampl/Mixer] ID = 1394994 933x501
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable Sound System 6 Watt DP 6 VT, Bogen, David Co., Inc.; New York (NY):
By courtesy of RadioShackCatalogs.com - See all the catalogs from 1939 to (almost) today at www RadioShackCatalogs.com. This picture is from 1939, page 68.

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1939 Category: Audio Amplifier or -mixer
Valves / Tubes 4: 6C6 6C6 6L6 5X4G
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Portable Sound System 6 Watt DP 6 VT - Bogen, David Co., Inc.; New
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 12.5 x 14 x 5.25 inch / 318 x 356 x 133 mm
Notes

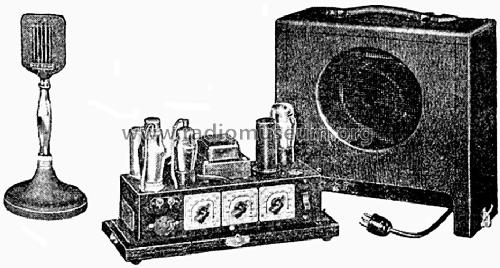

6 watt portable sound system DP6VT consists of:

  • Amplifier D6
    Input: High impedance micro and phono.
    Frequency response: 70 to 8000 Hz, ±2 dB.
  • No voltage Velotron microphone
  • Jensen 8" electro dynamic speaker

Cat. No. S9300
The tube 6C6G is given in the text, but the 6C6 has never been made as metal tube and therefore is correctly called 6C6 - as we do here.


Net weight (2.2 lb = 1 kg) 15.5 lb (15 lb 8 oz) / 7.037 kg
Price in first year of sale 38.37 USD
Mentioned in Radio Shack Catalog (1939, page 68)

Model page created by a member from D. See "Data change" for further contributors.
