PV-15

PV-15; Bogen, David Co., (ID = 2580177) Ampl/Mixer

PV-15; Bogen, David Co., (ID = 2580178) Ampl/Mixer
PV-15; Bogen, David Co., (ID = 1521484) Ampl/Mixer PV-15; Bogen, David Co., (ID = 1521486) Ampl/Mixer
PV-15; Bogen, David Co., (ID = 1521487) Ampl/Mixer PV-15; Bogen, David Co., (ID = 1521488) Ampl/Mixer
PV-15; Bogen, David Co., (ID = 1521489) Ampl/Mixer PV-15; Bogen, David Co., (ID = 1521490) Ampl/Mixer
PV-15; Bogen, David Co., (ID = 1521491) Ampl/Mixer PV-15; Bogen, David Co., (ID = 1521492) Ampl/Mixer
Use red slider bar for more.

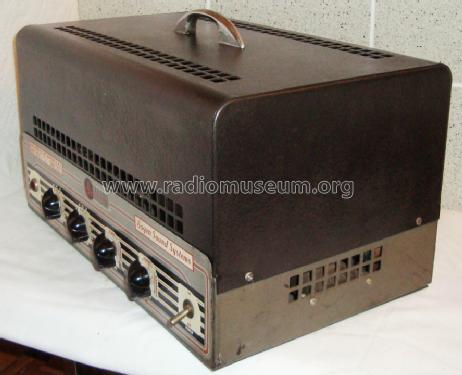

PV-15; Bogen, David Co., (ID = 1521484) Ampl/Mixer
Bogen, David Co.,: PV-15 [Ampl/Mixer] ID = 1521484 933x571
Select picture or schematic to display from thumbnails on the right and click for download.
For model PV-15, Bogen, David Co., Inc.; New York (NY):
aus ebay, #121174010716, Verkäufer hmb3823

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1950 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 9: 6SJ7 6SJ7 6SJ7 6SK7 6SL7GT 6SN7GT 6L6G 6L6G 5Y3GT
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: PV-15 - Bogen, David Co., Inc.; New
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 15 x 9 x 9.25 inch / 381 x 229 x 235 mm
Notes

PA amplifier with 2 channels: Phonograph and Expansion.

Net weight (2.2 lb = 1 kg) 23 lb (23 lb 0 oz) / 10.442 kg

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
