R501 ; Bogen, David Co., (ID = 946287) Radio

R501 ; Bogen, David Co., (ID = 946288) Radio

R501 ; Bogen, David Co., (ID = 946289) Radio

R501 ; Bogen, David Co., (ID = 946290) Radio
R501 ; Bogen, David Co., (ID = 946286) Radio
Use red slider bar for more.
R501 ; Bogen, David Co., (ID = 946286) Radio

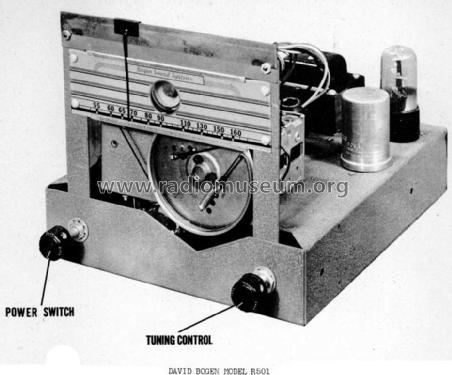

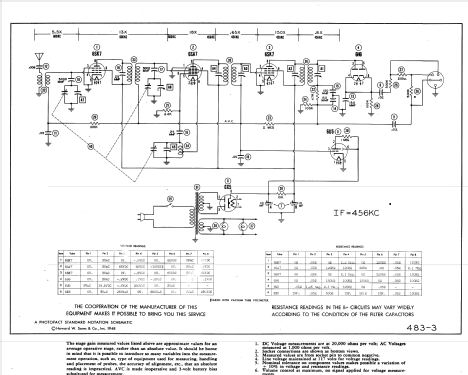

Bogen, David Co.,: R501 [Radio] ID = 946286 933x774
Select picture or schematic to display from thumbnails on the right and click for download.
For model R501, Bogen, David Co., Inc.; New York (NY):
SAMS Photofact

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SK7 6SA7 6SK7 6H6 6U5 6X5GT
Main principle Superhet with RF-stage
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: R501 - Bogen, David Co., Inc.; New
Material Metal case
Shape Chassis only or for «building in»
Literature/Schematics (4) Photofact Folder, Howard W. SAMS (Set 33, Date 2/48, Folder 483-3)

Model page created by Ernst Erb. See "Data change" for further contributors.
