R602

R602 ; Bogen, David Co., (ID = 582546) Radio

R602 ; Bogen, David Co., (ID = 582547) Radio

R602 ; Bogen, David Co., (ID = 582548) Radio

R602 ; Bogen, David Co., (ID = 582549) Radio

R602 ; Bogen, David Co., (ID = 582550) Radio

R602 ; Bogen, David Co., (ID = 582551) Radio

R602 ; Bogen, David Co., (ID = 582552) Radio

R602 ; Bogen, David Co., (ID = 582553) Radio
R602 ; Bogen, David Co., (ID = 582545) Radio
Use red slider bar for more.

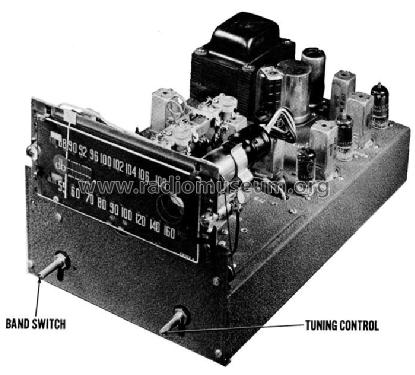

R602 ; Bogen, David Co., (ID = 582545) Radio
Bogen, David Co.,: R602 [Radio] ID = 582545 700x632
Select picture or schematic to display from thumbnails on the right and click for download.
For model R602, Bogen, David Co., Inc.; New York (NY):
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: 6J6 6BA6 7F8 6BA6 6E5 6BA6 6AU6 6BA6 6BE6 6BA6 6T8 5Y3GT
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: R602 - Bogen, David Co., Inc.; New
Material Metal case
Shape Chassis only or for «building in»
Notes The Bogen Model R602 is an AC operated FM-AM Superheterodyne Tuner.
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 8-49, Set 67, Folder 8)

Model page created by Egon Penker. See "Data change" for further contributors.
