For model R620, Bogen, David Co., Inc.; New York (NY):
aus ebay, mit Erlaubnis des Verkäufers urbanradio

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6AB4 6AB4 6BE6 6BA6 6AU6 6AL5 6C4 6X4
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: R620 - Bogen, David Co., Inc.; New
Material Metal case
Shape Book-shelf unit.
Notes

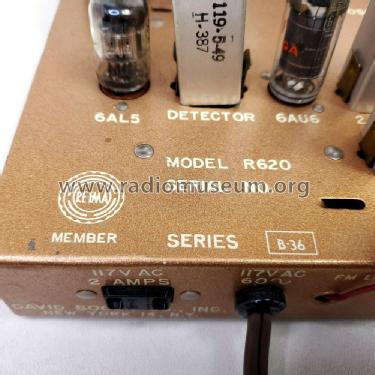

David Bogen model R620 is an AC operated FM-AM tuner.
FM-AM Tuner, mono; pairs with amplifier Bogen DB115.

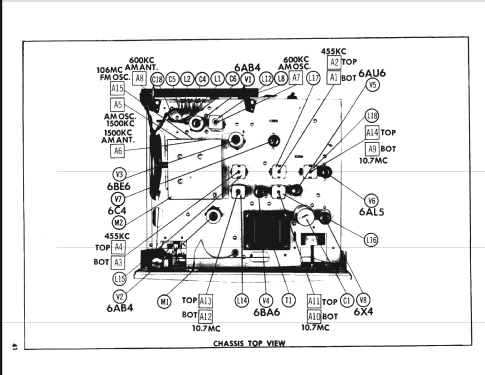

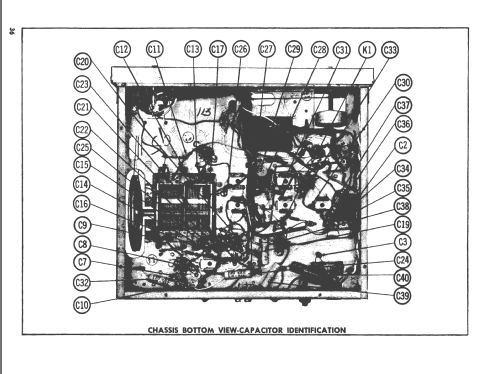

Mentioned in Photofact Folder, Howard W. SAMS
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 380 Folder 6 dated 12-57)

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
