- Country
- United States of America (USA)
- Manufacturer / Brand
- Bogen (-Presto), David Co., Inc.; New York, NY / Paramus, NJ
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 98026
Sams Photofact Folders

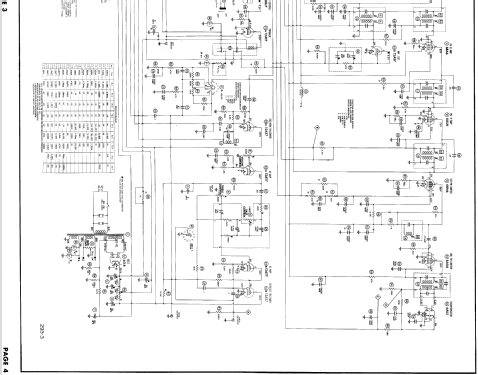

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6BK7A 6AB4 6U8 6BA6 6BE6 6BA6 6BA6 6AU6 6BN6 6AU6 6AL5 6BJ7 12AT7 12AT7 12AT7 12AT7 6X4
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: R765 - Bogen -Presto, David Co., Inc.
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 14.75 x 9 x 6.5 inch / 375 x 229 x 165 mm
- Notes
-
David Bogen model R765 is an AC operated AM-FM superheterodyne tuner for custom installation.
- Price in first year of sale
- 200.00 $
- Mentioned in
- Allied Radio Catalog Nº 150, 1956
- Literature/Schematics (1)

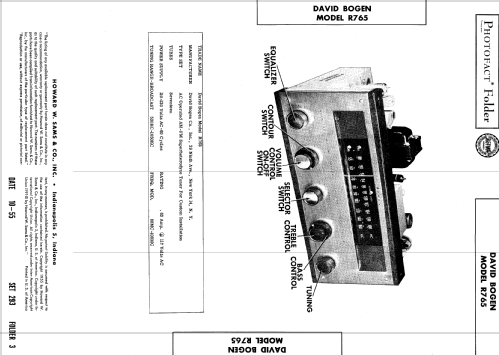

- Photofact Folder, Howard W. SAMS (Date 10-55, Set 293, Folder 3)
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
- Other Models
-
Here you find 242 models, 219 with images and 158 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Bogen (-Presto), David Co., Inc.; New York, NY / Paramus, NJ
