R-604 ; Bogen, David Co., (ID = 582187) Radio

R-604 ; Bogen, David Co., (ID = 582188) Radio

R-604 ; Bogen, David Co., (ID = 582189) Radio

R-604 ; Bogen, David Co., (ID = 582190) Radio

R-604 ; Bogen, David Co., (ID = 582191) Radio

R-604 ; Bogen, David Co., (ID = 582192) Radio

R-604 ; Bogen, David Co., (ID = 582193) Radio

R-604 ; Bogen, David Co., (ID = 582195) Radio
R-604 ; Bogen, David Co., (ID = 488350) Radio
Use red slider bar for more.
R-604 ; Bogen, David Co., (ID = 488350) Radio
Bogen, David Co.,: R-604 [Radio] ID = 488350 479x335
Select picture or schematic to display from thumbnails on the right and click for download.
For model R-604, Bogen, David Co., Inc.; New York (NY):

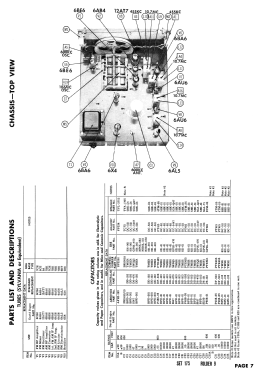

Sams photofact set 175 folder 9 date 8-52.

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1952 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6CB6 6AB4 12AT7 6BA6 6BE6 6BA6 6AU6 6AU6 6AL5 6X4
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: R-604 - Bogen, David Co., Inc.; New
Material Metal case
Shape Chassis only or for «building in»

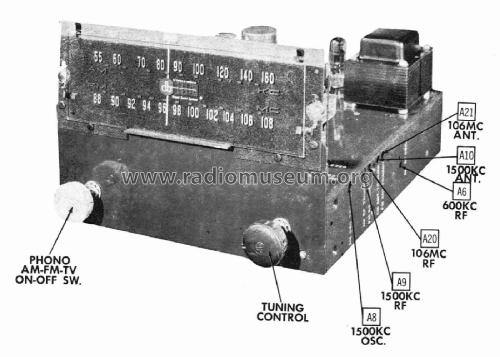

Notes The Bogen Model R-604 is an AC operated AM-FM Superheterodyne Tuner for Custom Installations.

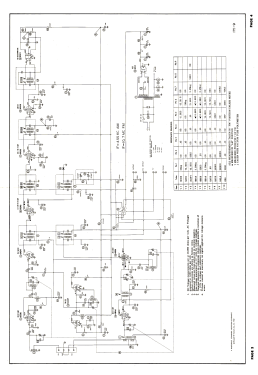

Literature/Schematics (1) Photofact Folder, Howard W. SAMS ((Set 175 folder 9 date 8-52 title))

Model page created by Peter Hoddow. See "Data change" for further contributors.
