For model RR29W, Bogen, David Co., Inc.; New York (NY):
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 6BA6 6BE6 6C4 6BA6 6AU6 6AL5 6AV6 12AX7 35C5 35C5 25Z6
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 150; 220 Volt
Loudspeaker 2 Loudspeakers / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: RR29W - Bogen, David Co., Inc.; New
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes The David Bogen Model RR29W is an AC Operated 11 Tube Multi-Band AM Superheterodyne Receiver.
Power Supply also available 110V DC.

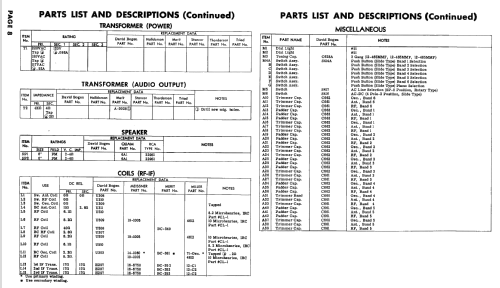

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 7-56, Set 322, Folder 5)

Model page created by Egon Penker. See "Data change" for further contributors.
