RR501C

RR501C ; Bogen, David Co., (ID = 1911442) Radio RR501C ; Bogen, David Co., (ID = 1118622) Radio
RR501C ; Bogen, David Co., (ID = 1118624) Radio RR501C ; Bogen, David Co., (ID = 1118627) Radio
RR501C ; Bogen, David Co., (ID = 1118630) Radio RR501C ; Bogen, David Co., (ID = 1911443) Radio
RR501C ; Bogen, David Co., (ID = 1911444) Radio RR501C ; Bogen, David Co., (ID = 1911445) Radio
RR501C ; Bogen, David Co., (ID = 1911446) Radio RR501C ; Bogen, David Co., (ID = 1911447) Radio
Use red slider bar for more.

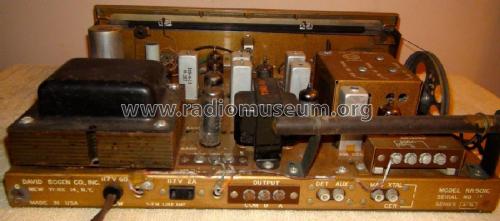

RR501C ; Bogen, David Co., (ID = 1911442) Radio
Bogen, David Co.,: RR501C [Radio] ID = 1911442 1360x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model RR501C, Bogen, David Co., Inc.; New York (NY):
aus ebay, #121765066294, Verkäufer oceanview_hi

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1958 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: 6AB4 6AB4 6BE6 6BA6 6AU6 6AL5 6AV6 12AX7 12AX7 6AQ5 6AQ5 6BW4
Main principle Superhet with RF-stage
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out 17.5 W (unknown quality)
from Radiomuseum.org Model: RR501C - Bogen, David Co., Inc.; New
Material Metal case
Shape Tablemodel, low profile (big size).
Notes

Receiver, mono; phono equalization switchable POP / 78 / LP.

Mentioned in USA Audio Asylum

Model page created by Jorge Cifuentes. See "Data change" for further contributors.
