Transistor Mobile 40 Watt P.A. Amplifier BT-35A

Transistor Mobile 40 Watt P.A. Amplifier BT-35A; Bogen, David Co., (ID = 1883794) Ampl/Mixer
Transistor Mobile 40 Watt P.A. Amplifier BT-35A; Bogen, David Co., (ID = 1883790) Ampl/Mixer Transistor Mobile 40 Watt P.A. Amplifier BT-35A; Bogen, David Co., (ID = 1883791) Ampl/Mixer
Transistor Mobile 40 Watt P.A. Amplifier BT-35A; Bogen, David Co., (ID = 1883792) Ampl/Mixer Transistor Mobile 40 Watt P.A. Amplifier BT-35A; Bogen, David Co., (ID = 1883793) Ampl/Mixer
Transistor Mobile 40 Watt P.A. Amplifier BT-35A; Bogen, David Co., (ID = 1883795) Ampl/Mixer Transistor Mobile 40 Watt P.A. Amplifier BT-35A; Bogen, David Co., (ID = 1883796) Ampl/Mixer
Use red slider bar for more.

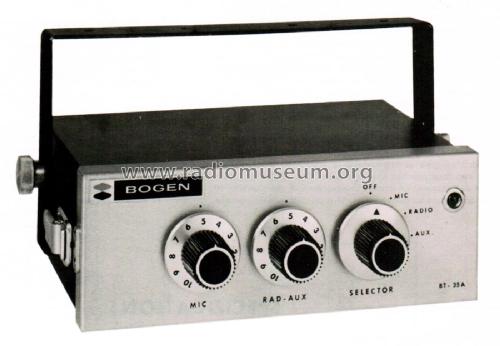

Transistor Mobile 40 Watt P.A. Amplifier BT-35A; Bogen, David Co., (ID = 1883790) Ampl/Mixer
Bogen, David Co.,: Transistor Mobile 40 Watt P.A. Amplifier BT-35A [Ampl/Mixer] ID = 1883790 1400x970
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor Mobile 40 Watt P.A. Amplifier BT-35A, Bogen, David Co., Inc.; New York (NY):

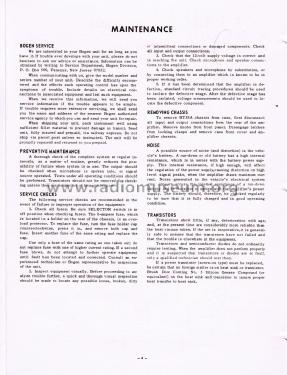

Installation and Operating Manual

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1970 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / 15 DC Volt
Loudspeaker - This model requires external speaker(s).
Power out 40 W (55 W max.)
from Radiomuseum.org Model: Transistor Mobile 40 Watt P.A. Amplifier BT-35A - Bogen, David Co., Inc.; New
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 8 x 3 x 6.25 inch / 203 x 76 x 159 mm
Notes

Bogen Mobile Transistorized 40 Watt P.A. Amplifier Model BT-35A.
Gain: Radio-Aux. Input 90dB, Mic In 110dB
Output Power: 40 Watts at 14VDC; peak power 55 Watts
Inputs: 3x Mic's (50-500ohms, 200ohms nominal), Radio, Aux.
Output Impedance: 4, 8 or 16 ohms

Net weight (2.2 lb = 1 kg) 6 lb (6 lb 0 oz) / 2.724 kg
Mentioned in - - Manufacturers Literature (Installation and Operating Manual)

Model page created by Franz Scharner. See "Data change" for further contributors.
