- Land
- USA
- Hersteller / Marke
- Bogen (-Presto), David Co., Inc.; New York, NY / Paramus, NJ
- Jahr
- 1953
- Kategorie
- Kommerzieller Sender & Empfänger (TRX nicht Amateur)
- Radiomuseum.org ID
- 145568

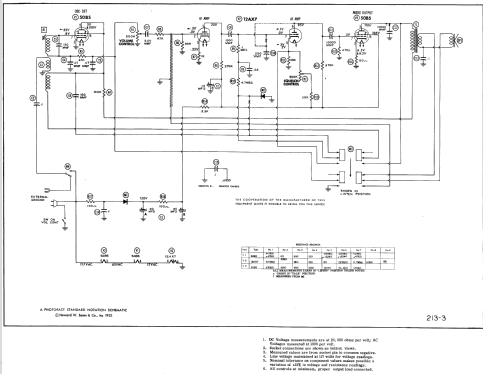

Klicken Sie auf den Schaltplanausschnitt, um diesen kostenlos als Dokument anzufordern.
- Anzahl Röhren
- 3
- Anzahl Transistoren
- Halbleiter
- 1N51_Diode Selenium-Rectifier
- Hauptprinzip
- 3 NF-Stufe(n)
- Anzahl Kreise
- 1 Kreis(e) AM
- Wellenbereiche
- Wellen in den Bemerkungen.
- Betriebsart / Volt
- Allstromgerät / 110 - 120 Volt
- Lautsprecher
- Dynamischer LS, keine Erregerspule (permanentdynamisch) / Ø 3.5 inch = 8.9 cm
- von Radiomuseum.org
- Modell: Twin - Bogen -Presto, David Co., Inc.
- Form
- Tischmodell, Zusatz nicht bekannt - allgemein.
- Bemerkung
-
The David Bogen Model Twin is an AC/DC Operated Two or More Station Wireless Intercommunication System.
The system operates by modulating the AC power line (or GND if using an AC with GND plug) with an Amplitude Modulated (AM) frequency between 160-196kHz. Therefore, all units must be connected to the same phase AC power line, such as in a single building. A single slug-tuned oscillator tunes to the desired transmit/receive frequency channel between 160 - 196kHz. (nominal is 175kHz).
Another independent net of units may also operate on the same AC power line by tuning the first net units to the low end, near 160kHz, and the second net units to the upper end, near 196kHz.
A "Silent Watchman" mode may be enabled by pressing the Push-to-Talk button down and to the left to lock one unit to the Transmit mode; thus, all other units may continuously and silently listen to that one unit, much like a baby monitor is used today.
- Literatur/Schema (1)
- Photofact Folder, Howard W. SAMS (Date 8-53, Set 213, Folder 3)
- Literatur/Schema (2)

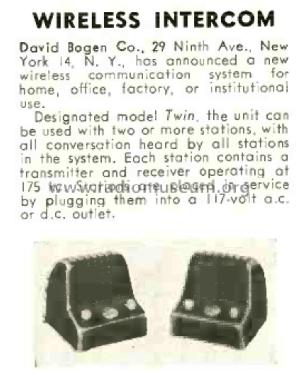

- Radio Electronics (U.S. Magazine) (Mar 1953, pg 111, new model "TWIN" announced.)
