Universal Phono Assembly UT 15

Universal Phono Assembly UT 15; Bogen, David Co., (ID = 1408424) R-Player Universal Phono Assembly UT 15; Bogen, David Co., (ID = 1408425) R-Player
Use red slider bar for more.
Universal Phono Assembly UT 15; Bogen, David Co., (ID = 1408424) R-Player
Bogen, David Co.,: Universal Phono Assembly UT 15 [R-Player] ID = 1408424 933x659
Select picture or schematic to display from thumbnails on the right and click for download.
For model Universal Phono Assembly UT 15, Bogen, David Co., Inc.; New York (NY):

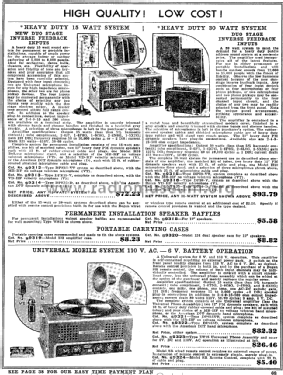

By courtesy of RadioShackCatalogs.com - See all the catalogs from 1939 to (almost) today at www RadioShackCatalogs.com. This picture is from 1939, page 69.

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1939 Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Record Player (not changer)
Power type and voltage Line / Storage batteries (perhaps also batteries) / 50 to 60 Hz, 110 / DC 6 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Universal Phono Assembly UT 15 - Bogen, David Co., Inc.; New
Material Metal case
Shape Chassis only or for «building in»
Notes

Bogen universal phono assembly UT 15.

Radio-Shack Cat. No. S9323

The amplifiers DP615VT and DP615D are covered with a smart streamlined cover, less the universal phono assembly UT15, which can be added at the option of the purchaser and merely replaces the regular cover.

Price in first year of sale 26.46 USD
Mentioned in Radio Shack Catalog (1939, page 69)
