• Country
• United States of America (USA)

• Manufacturer / Brand
• Challenger Amplifier Co. (Bogen); New York, NY / Paramus, NJ

• Year
• 1967 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 267925

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 60Hz 105 - 125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 200 W (max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: Solid State Series CHS100 - Challenger Amplifier Co. Bogen

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 15.25 x 5.5 x 10.5 inch / 387 x 140 x 267 mm

• Notes

• Bogen Fully Transistorized Public Address Amplifier Model Challenger Solid State Series CHS100.
  Power Output 100 Watts at less than 5% THD, PeakPower 200 Watts.
  Frequency Response 40 - 20000Hz +/-2dB
  Inputs:
  2x Mic (1x High - 100 kOhms, 1x Low - 200 Ohms), 2x AUX (300kOhms)
  Bridging (High Impedance)
  Outputs:
  2, 8, 16 ohm speakers, Tape or Booster Amplifier
  Shipping Weight: 24 pounds



• Price in first year of sale
• 157.15 USD

• Mentioned in

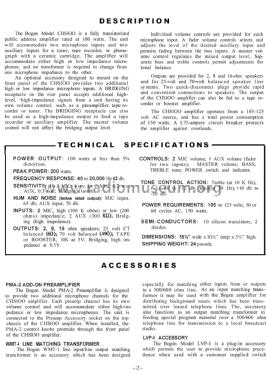

• - - Manufacturers Literature (Service Manual)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
