FM-AM Tuner R660

FM-AM Tuner R660; Bogen-Presto Co; (ID = 1960415) Radio

FM-AM Tuner R660; Bogen-Presto Co; (ID = 1960416) Radio

FM-AM Tuner R660; Bogen-Presto Co; (ID = 1960417) Radio

FM-AM Tuner R660; Bogen-Presto Co; (ID = 1960418) Radio

FM-AM Tuner R660; Bogen-Presto Co; (ID = 1960419) Radio

FM-AM Tuner R660; Bogen-Presto Co; (ID = 1960420) Radio

FM-AM Tuner R660; Bogen-Presto Co; (ID = 1960421) Radio

FM-AM Tuner R660; Bogen-Presto Co; (ID = 1602571) Radio

FM-AM Tuner R660; Bogen-Presto Co; (ID = 1602572) Radio

FM-AM Tuner R660; Bogen-Presto Co; (ID = 1602575) Radio
FM-AM Tuner R660; Bogen-Presto Co; (ID = 1601315) Radio FM-AM Tuner R660; Bogen-Presto Co; (ID = 1601322) Radio
FM-AM Tuner R660; Bogen-Presto Co; (ID = 1601324) Radio FM-AM Tuner R660; Bogen-Presto Co; (ID = 1601325) Radio
FM-AM Tuner R660; Bogen-Presto Co; (ID = 1601326) Radio FM-AM Tuner R660; Bogen-Presto Co; (ID = 1960084) Radio
FM-AM Tuner R660; Bogen-Presto Co; (ID = 2036302) Radio FM-AM Tuner R660; Bogen-Presto Co; (ID = 2036303) Radio
FM-AM Tuner R660; Bogen-Presto Co; (ID = 2036304) Radio FM-AM Tuner R660; Bogen-Presto Co; (ID = 2036305) Radio
Use red slider bar for more.

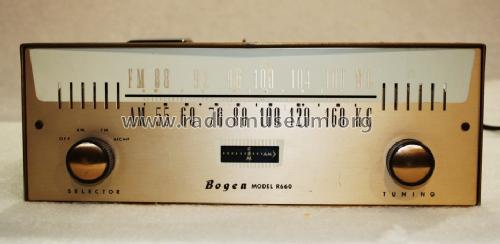

FM-AM Tuner R660; Bogen-Presto Co; (ID = 1601315) Radio

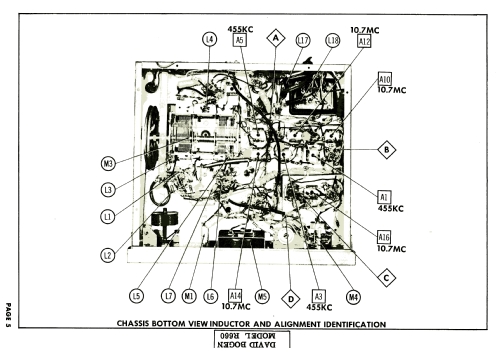

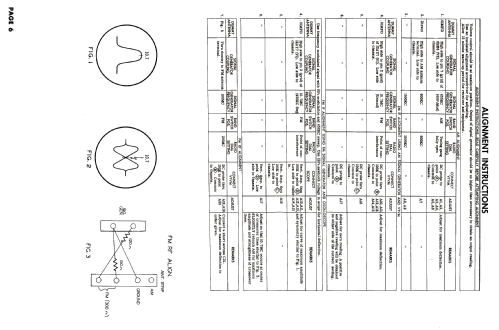

Bogen-Presto Co;: FM-AM Tuner R660 [Radio] ID = 1601315 933x456
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM-AM Tuner R660, Bogen-Presto Co; Paramus (NJ)

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen-Presto Co; Paramus (NJ)
Year: 1956–1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 12AT7 6U8 6BE6 6BA6 6AU6 6AU6 6AU6 6BJ7 12AU7A 6X4
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 60 cycles, 110-120 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: FM-AM Tuner R660 - Bogen-Presto Co; Paramus NJ
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 12 x 11 x 5.75 inch / 305 x 279 x 146 mm
Notes
10-tube tuner employing Foster-Seeley discriminator preseded by double limiter. AM-FM tuning meter, AFC and defeat, and low impedance cathode follower output. Other features include: 1.5V output for tape, 2.5 uv for 30 db AM; 1515,000 +/- db FM, 50-50,000 cps +/- 3 db AM sensitivity; built in FM and AM antennas. Size 12 x 11 x 5-3/4".
Ship wt. 9 lbs.

Radio Shack catalog prices:

1956 - $119.50
1957 - $119.50
1958 - $122.50
Net weight (2.2 lb = 1 kg) 9 lb 0 oz (9 lb) / 4.086 kg
Price in first year of sale 119.50 USD
Mentioned in Radio Shack Catalog (Bogen Model R660 FM-AM Tuner)
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 336, Folder 4, Date 11-56)

Model page created by Craig Curry. See "Data change" for further contributors.
