Q Standard - Inductor 103A

Q Standard - Inductor 103A; Boonton Radio Corp.; (ID = 1248828) Equipment
Q Standard - Inductor 103A; Boonton Radio Corp.; (ID = 1248678) Equipment Q Standard - Inductor 103A; Boonton Radio Corp.; (ID = 1248652) Equipment
Q Standard - Inductor 103A; Boonton Radio Corp.; (ID = 1248677) Equipment Q Standard - Inductor 103A; Boonton Radio Corp.; (ID = 1841772) Equipment
Q Standard - Inductor 103A; Boonton Radio Corp.; (ID = 1841773) Equipment Q Standard - Inductor 103A; Boonton Radio Corp.; (ID = 1841774) Equipment
Q Standard - Inductor 103A; Boonton Radio Corp.; (ID = 2030442) Equipment Q Standard - Inductor 103A; Boonton Radio Corp.; (ID = 2030445) Equipment
Q Standard - Inductor 103A; Boonton Radio Corp.; (ID = 2030455) Equipment Q Standard - Inductor 103A; Boonton Radio Corp.; (ID = 2030456) Equipment
Use red slider bar for more.
Q Standard - Inductor 103A; Boonton Radio Corp.; (ID = 1248678) Equipment
Boonton Radio Corp.;: Q Standard - Inductor 103A [Equipment] ID = 1248678 912x689
Select picture or schematic to display from thumbnails on the right and click for download.
For model Q Standard - Inductor 103A, Boonton Radio Corp.; Boonton, New Jersey:
Source: Ebay

Country:  United States of America (USA)
Manufacturer / Brand:  Boonton Radio Corp.; Boonton, New Jersey
Year: 1955 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Q Standard - Inductor 103A - Boonton Radio Corp.; Boonton,
Material Special material, described in the notes.
Notes The Boonton Q Standard Set 103A comprises of a series of standard inductors.
These inductors are designed specifically for use in the Q circuit of the Type 160-A and 260-A Q-Meters, for measuring the radio-frequency characteristics of capacitors, including materials, resistors, etc.

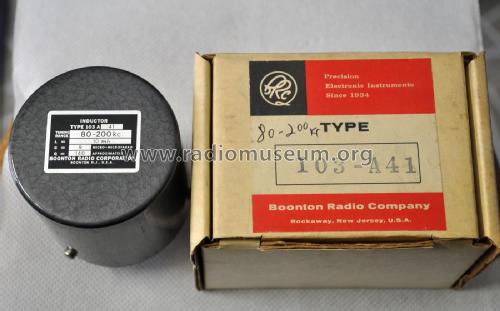

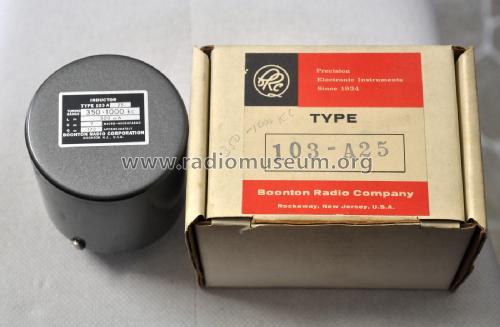

Each Type 103-A Inductor consists of a high Q coil mounted in a convenient shield and provided with plug terminals which plug directly into the coil terminals of the Q-Meter to facilitate the quick interchange of inductors for measurements at various frequencies. Complete shielding eliminates errors in measurement due to coupling between the inductor and the test component and again with nearby objects, which coupling might alter the Q circuit constants during a measurement. Perfect shielding provides the desired stability.
The Q of the majority of the Type 103-A Inductors is in the region of 200, over the normal range of tuning capacitance of from 50 to 400 pF. The approximate variation in Q with tuning capacitance of a typical 103-A Inductor is shown in the attached curve. A few of the higher inductance inductors have a Q of less than 200. The approximate Q of each inductor is listed.
The true inductance of types A1 through A42 is adjusted to within 2 per cent of their nominal value.
Tolerance on other coils is slightly wider. The total distributed capacitance varies as indicated.
For convenience in selecting the correct inductance, the approximate frequencies at which each inductor resonates with two or three different tuning capacitances is included in the attached list.
Price in first year of sale 18.00 $
Source of data -- Original prospect or advert

Model page created by Pius Steiner. See "Data change" for further contributors.
