BCN 52

BCN 52; Fernseh Fernseh AG, (ID = 1289884) R-Player BCN 52; Fernseh Fernseh AG, (ID = 1289885) R-Player
BCN 52; Fernseh Fernseh AG, (ID = 1556611) R-Player BCN 52; Fernseh Fernseh AG, (ID = 1556612) R-Player
BCN 52; Fernseh Fernseh AG, (ID = 1556613) R-Player BCN 52; Fernseh Fernseh AG, (ID = 1556614) R-Player
BCN 52; Fernseh Fernseh AG, (ID = 1556616) R-Player
Use red slider bar for more.
BCN 52; Fernseh Fernseh AG, (ID = 1289884) R-Player
Fernseh Fernseh AG,: BCN 52 [R-Player] ID = 1289884 512x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model BCN 52, Fernseh (Fernseh AG, GmbH, FESE, Bosch Fernsehanlagen); Berlin - Darmstadt:

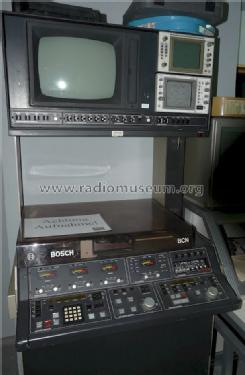

Ausgestelltes Gerät in der Kinoptikum Sammlung des RRRollipop Museums in Eggenburg.

Country:  Germany
Manufacturer / Brand:  Fernseh (Fernseh AG, GmbH, FESE, Bosch Fernsehanlagen); Berlin - Darmstadt
Year: 1985 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Wave bands - without
Details Video-Taperecorder/-Player
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BCN 52 - Fernseh Fernseh AG, GmbH, FESE
Material Metal case
Shape Console with any shape - in general
Dimensions (WHD) 721 x 1745 x 778 mm / 28.4 x 68.7 x 30.6 inch
Notes




Video Signal System PAL: R/P
Videostandard: 1"-B
Tuner equipped: No HF Output: No
Timer: No Color: Yes
Insert-Cut: Yes Controllable by Editing-System: Yes
Timebas Corrector: Yes RGB Video In/Out: No
Composite (FBAS) Video In/Out: Yes Component Video In/Out: No
S-Video In/Out: No Signal to Noise Video: >44dB
Horizontal Resol. black/white: 440l. Horizontal Resolution Color: 440l.
Dropout compensator: Yes Wow and Flutter lin. audiotrack: -
No. of Audiochannels linear track: 3 No. of Audiochannels helical track:

0

Signal to Noise linear Audio track: - Signal to Noise helical Audio track: -
Audio Out Sym Audio In Sym
crosstalk lin. Audio track - crosstalk heli. Audio track -

Audio Frequency Response : -
Remote Control: by Edit Control System


Professioneller Studio- bzw. Broadcastvideorecorder (Farbe). Bestückt mit Kontrollmonitor z.B. Bosch/FESE oder Barco. Philips bzw. Tektronix Waveform Monitor & Vektorskop. Zwei Lautsprecher in rechter Säule der Monitorbrücke. Dolby A oder Telcom (optional) Rauschunterderückung.

Net weight (2.2 lb = 1 kg) 220 kg / 484 lb 9.3 oz (484.581 lb)
Source of data -- Original prospect or advert
