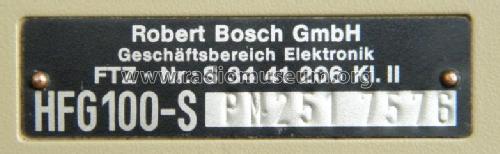

Handfunkgerät HFG100-S
Bosch; Deutschland
- Country
- Germany
- Manufacturer / Brand
- Bosch; Deutschland
- Year
- 1978 ?
- Category
- Commercial Transmitter & Receiver (TRX not Amateur)
- Radiomuseum.org ID
- 232844
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver; ZF/IF 455/21400 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 7,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: Handfunkgerät HFG100-S - Bosch; Deutschland
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 80 x 305 x 25 mm / 3.1 x 12 x 1 inch
- Notes
-
Seefunkgerät, Frequenzbereich 156,025 - 162,025 MHz, Frequenzmodulation. 44 Kanäle (01 - 22, 60 - 74, 77 - 82, 84), andere Programmierung möglich (z.B. internationale 55 Kanäle). Kanalabstand 25 kHz. Sendeleistung 1 W, NF-Leistung 0,5 W. Betriebsarten Simplex, Semiduplex, Zweikanalüberwachung.
NC-Akku mit 450 mAh (ca. 9 Std. Betriebszeit) oder NC-Akku mit 800 mAh (ca. 16 Std. Betriebszeit).
- Net weight (2.2 lb = 1 kg)
- 0.950 kg / 2 lb 1.5 oz (2.093 lb)
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
