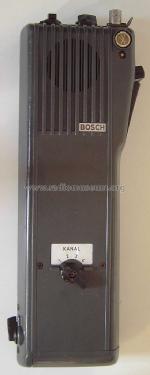

Bosch; Deutschland: Handfunksprecher HFG 160 IV 0,5/20 [Commercial TRX] ID = 2590385 562x1400
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1965 | Category: Commercial Transmitter & Receiver (TRX not Amateur) | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Main principle | Transceiver; ZF/IF 10700/473 kHz |
|---|---|
| Wave bands | VHF incl. FM and/or UHF (see notes for details) |
| Details | |
| Power type and voltage | Storage Battery for all (e.g. for car radios and amateur radios) / 15 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch |
| Power out | |
| from Radiomuseum.org | Model: Handfunksprecher HFG 160 IV 0,5/20 - Bosch; Deutschland |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 80 x 250 x 35 mm / 3.1 x 9.8 x 1.4 inch |

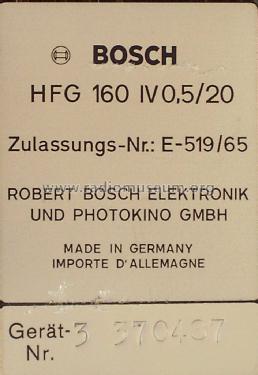

| Notes | Handfunkgerät für Betriebsfunk im 2 m-Band (Bereich 146 bis 174 MHZ). Es gibt auch eine Version des HFG 160 für das 4 m-Band. 4 Kanäle schaltbar, Frequenzmodulation, Sendeleistung ursprünglich 0,25 W, spätere Geräte 0,5 W bzw. 1 W, NF-Leistung 0,5 W. FTZ-Nr.: E-519/65 |
| Net weight (2.2 lb = 1 kg) | 0.850 kg / 1 lb 14 oz (1.872 lb) |
Model page created by Siegfried Droese. See "Data change" for further contributors.
