Handsprechfunkgerät HFG 169 R5+SR
Bosch; Deutschland
- Country
- Germany
- Manufacturer / Brand
- Bosch; Deutschland
- Year
- 1992 ?
- Category
- Commercial Transmitter & Receiver (TRX not Amateur)
- Radiomuseum.org ID
- 316183
Gerät mit 5 Kanälen
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver; ZF/IF 21400/455 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Storage and/or dry batteries / 7,2 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: Handsprechfunkgerät HFG 169 R5+SR - Bosch; Deutschland
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 70 x 193 x 26 mm / 2.8 x 7.6 x 1 inch
- Notes
-

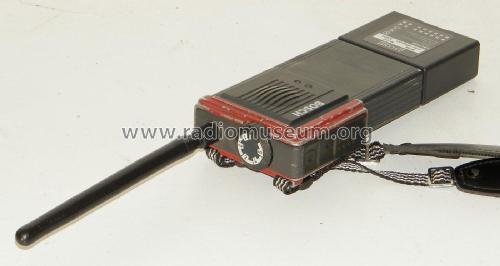

Handfunkgerät, für Verwendung im Betriebsfunk konzipiert.
Versionen mit 1, 5 bzw. 10 Kanälen, Kanalabstand 12,5, 20 bzw. 25 kHz.
Frequenzbereich 146 - 174 MHz, Frequenzmodulation.
Sendeleistung 2,5 W, NF-Leistung 0,4 W.

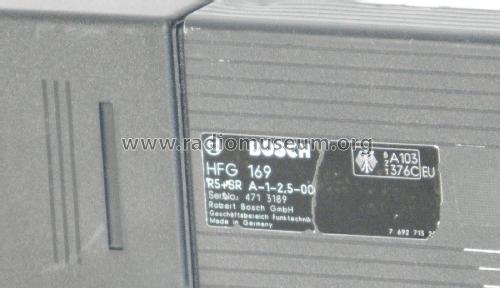

Zulassung BZT A103 376C
- Net weight (2.2 lb = 1 kg)
- 0.6 kg / 1 lb 5.1 oz (1.322 lb)
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
