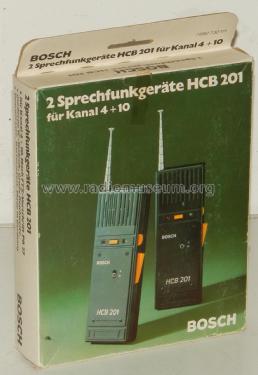

Sprechfunkgerät HCB 201
Bosch; Deutschland
- Country
- Germany
- Manufacturer / Brand
- Bosch; Deutschland
- Year
- 1978
- Category
- Citizen Band Equipment
- Radiomuseum.org ID
- 327320
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Sprechfunkgerät HCB 201 - Bosch; Deutschland
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 65 x 190 x 28 mm / 2.6 x 7.5 x 1.1 inch
- Notes
-
Hand-Sprechfunkgerät, 2 Kanäle im 27 MHz-CB-Band (Kanäle Nr. 4 und 10),
Amplitudenmodulation, Rufton, Batteriekontrolle durch LED.
Zulassung FTZ-Nr. PR27-452/78
- Net weight (2.2 lb = 1 kg)
- 0.2 kg / 0 lb 7 oz (0.441 lb)
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
