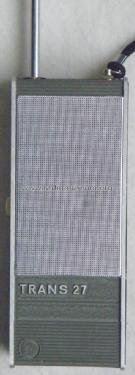

Bosch; Deutschland: TRANS 27 [Citizen] ID = 1117912 933x830
Select picture or schematic to display from thumbnails on the right and click for download.
For model TRANS 27, Bosch; Deutschland

Country:  Germany
Manufacturer / Brand:  Bosch; Deutschland
Year: 1964 Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Transceiver; ZF/IF 455 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch
Power out
from Radiomuseum.org Model: TRANS 27 - Bosch; Deutschland
Material Metal case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 75 x 180 x 40 mm / 3 x 7.1 x 1.6 inch
Notes Handfunkgerät für den 27-MHz-CB-Bereich.
Ein Kanal, Amplitudenmodulation.
FTZ-Nr. K-495/64
Hergestellt von Oki, Tokyo.
Net weight (2.2 lb = 1 kg) 0.450 kg / 0 lb 15.9 oz (0.991 lb)

Model page created by Siegfried Droese. See "Data change" for further contributors.
