Préampli-Ampli 30W AS35 d
Bouyer, Paul (Harmonic Radio); Montauban, Paris
- Country
- France
- Manufacturer / Brand
- Bouyer, Paul (Harmonic Radio); Montauban, Paris
- Year
- 1988 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 196956
- Number of Transistors
- 14
- Semiconductors
- unknown_tr 2N3055 2N3055
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 30 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Préampli-Ampli 30W AS35 d - Bouyer, Paul Harmonic Radio;
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 420 x 130 x 300 mm / 16.5 x 5.1 x 11.8 inch
- Notes
-

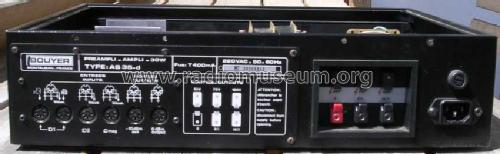

Entrées (DIN) :
- 1 x microphone à deux prises : une parole, une musique
- 1 x microphone
- 1 x pick-up magnétique
- 1 x Aux (-10 dBm, combiné sortie)
Sorties :
- 1 x DIN (0 dBm)
- 8 et 16 Ohm, ligne 50, 70 et 100 Volt
7 IC.
- Net weight (2.2 lb = 1 kg)
- 8.3 kg / 18 lb 4.5 oz (18.282 lb)
- Author
- Model page created by Karl Reiter. See "Data change" for further contributors.
