• Country
• Germany

• Manufacturer / Brand
• Brandt (Roland Brandt); Berlin

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1049

• • alternative name: Motorfahrzeug-Fabrik

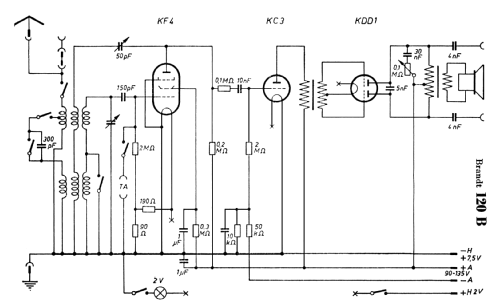

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• KF4 KC3 KDD1

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 130 / 2 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 120B - Brandt Roland Brandt; Berlin

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 503 x 270 x 250 mm / 19.8 x 10.6 x 9.8 inch

• Notes
• Gross-Sichtskala, Tonblenderegler,
  Nussbaumflachgehäuse mit Zierleisten.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Price in first year of sale
• 122.00 RM

• Source of data
• Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + FS-Bestückungstabellen
