• Country
• Germany

• Manufacturer / Brand
• Brandt (Roland Brandt); Berlin

• Year
• 1935–1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1026

• • alternative name: Motorfahrzeug-Fabrik

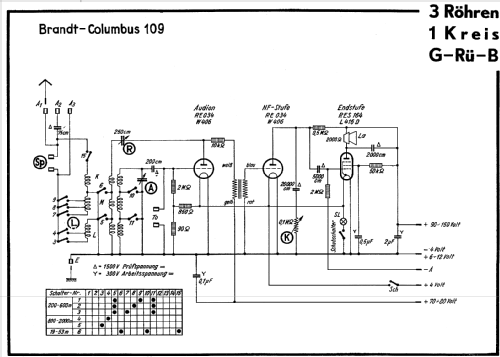

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RE034 RE034 RES164

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries / 150+4 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931).

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Columbus 109 - Brandt Roland Brandt; Berlin

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 350 x 410 x 195 mm / 13.8 x 16.1 x 7.7 inch

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Price in first year of sale
• 110.00 RM

• Source of data
• Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• HandB.d.d.Rundfunk-Handels 1936/37

• Other Models

• Here you find 237 models, 172 with images and 135 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
