• Country
• Germany

• Manufacturer / Brand
• Brandt (Roland Brandt); Berlin

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1035

• • alternative name: Motorfahrzeug-Fabrik

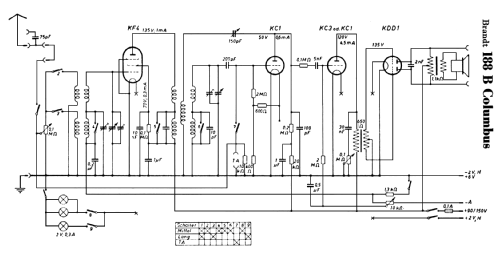

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• KF4 KC1_4pin KC3 or KC1_4pin KDD1

• Main principle
• TRF with regeneration; 1 Special; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 150+2 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Columbus 188B - Brandt Roland Brandt; Berlin

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 565 x 285 x 253 mm / 22.2 x 11.2 x 10 inch

• Price in first year of sale
• 191.00 RM

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch
