A501; Braun; Frankfurt (ID = 1658215) Ampl/Mixer
Braun; Frankfurt: A501 [Ampl/Mixer] ID = 1658215 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model A501, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1978–1981 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: A501 - Braun; Frankfurt
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 500 x 65 x 330 mm / 19.7 x 2.6 x 13 inch
Notes HiFi-Vollverstärker mit 2× 65 Watt (Sinus) an 4 Ohm. Eingänge: Tuner, 2× Tape, Monitor und Phono. Schalter für Mono, LED-Aussteueranzeige abschaltbar.
Gehäusefarbe Schwarz oder Grau.
Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Price in first year of sale 998.00 DM
Mentioned in -- Original prospect or advert

Model page created by Peter Böhm. See "Data change" for further contributors.



All listed radios etc. from Braun; Frankfurt
Here you find 1039 models, 905 with images and 644 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Braun; Frankfurt: A501
Threads: 1 | Posts: 1
Hits: 1462     Replies: 0
braun: A501; Brandgeruch...
Günther Stabe † 19.8.20
21.Jan.15
  1

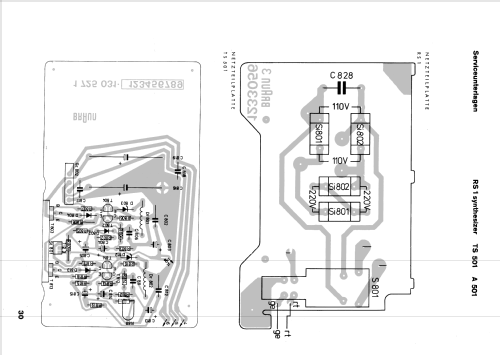

Aufgrund einer heute beendeten Auktion ist dort der Beschreibung zu entnehmen, dass auch hier der uns schon bekannte Entstörkondensator C828 "Probleme" macht. In diesem Beitrag wurde das bereits näher beschrieben und bebildert.

G.S.
