AC701; Braun; Frankfurt (ID = 561597) Ampl/Mixer
Braun; Frankfurt: AC701 [Ampl/Mixer] ID = 561597 743x238
Select picture or schematic to display from thumbnails on the right and click for download.
For model AC701, Braun; Frankfurt:

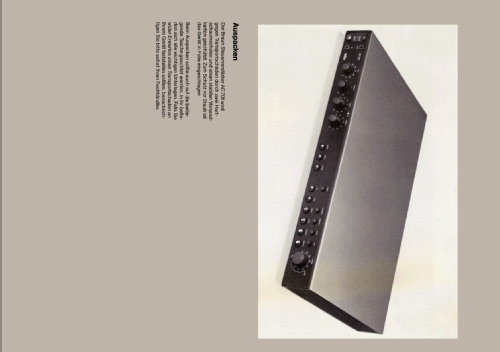

Original prospekt in 1980.

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1980/1981 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AC701 - Braun; Frankfurt
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 500 x 65 x 345 mm / 19.7 x 2.6 x 13.6 inch
Notes HiFi-Vorverstärker mit 15 Ein- bzw. Ausgängen in Cinch, DIN und Klinke. Mikrofon einblendbar. 10-100000 Hz, Klangregelung: Höhen bei 10kHz, Bässe bei 50Hz, High-, Low-Filter, Subsonic Filter.
Gehäusefarbe Schwarz.
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Price in first year of sale 1'048.00 DM
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
