AP701

AP701; Braun; Frankfurt (ID = 977495) Ampl/Mixer

AP701; Braun; Frankfurt (ID = 977496) Ampl/Mixer

AP701; Braun; Frankfurt (ID = 977498) Ampl/Mixer

AP701; Braun; Frankfurt (ID = 977491) Ampl/Mixer

AP701; Braun; Frankfurt (ID = 977492) Ampl/Mixer

AP701; Braun; Frankfurt (ID = 977493) Ampl/Mixer

AP701; Braun; Frankfurt (ID = 977490) Ampl/Mixer

AP701; Braun; Frankfurt (ID = 1510037) Ampl/Mixer

AP701; Braun; Frankfurt (ID = 1510038) Ampl/Mixer

AP701; Braun; Frankfurt (ID = 1510039) Ampl/Mixer
AP701; Braun; Frankfurt (ID = 561598) Ampl/Mixer AP701; Braun; Frankfurt (ID = 1734197) Ampl/Mixer
AP701; Braun; Frankfurt (ID = 1771236) Ampl/Mixer AP701; Braun; Frankfurt (ID = 1771237) Ampl/Mixer
AP701; Braun; Frankfurt (ID = 1901711) Ampl/Mixer AP701; Braun; Frankfurt (ID = 1901718) Ampl/Mixer
AP701; Braun; Frankfurt (ID = 1901719) Ampl/Mixer AP701; Braun; Frankfurt (ID = 1901721) Ampl/Mixer
AP701; Braun; Frankfurt (ID = 1901722) Ampl/Mixer
Use red slider bar for more.
AP701; Braun; Frankfurt (ID = 561598) Ampl/Mixer

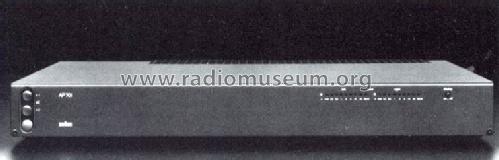

Braun; Frankfurt: AP701 [Ampl/Mixer] ID = 561598 743x238

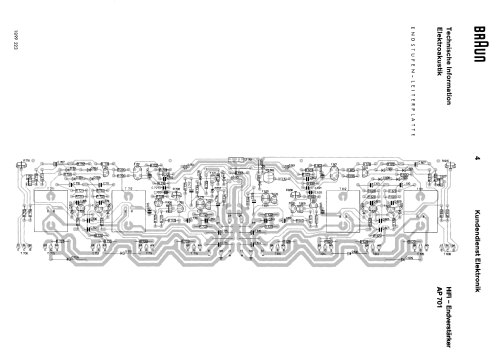

Select picture or schematic to display from thumbnails on the right and click for download.
For model AP701, Braun; Frankfurt:
Original prospekt in 1980.

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1980/1981 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present. BC556 BC548 BC558 2328866 2SC2344 2SA1011 BD135 BD139 18369 18368 BD750 BD751 LM3915 BA220 ZPD5,1 1N4003 1N4148 BAX13 Z24W AA144 BYW72 BYW22
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 200 W (300 W max.)
from Radiomuseum.org Model: AP701 - Braun; Frankfurt
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 500 x 65 x 375 mm / 19.7 x 2.6 x 14.8 inch
Notes

HiFi-Endverstärker mit 2 x 100 Watt an 8 Ω;
2-kanalige Aussteuerungsanzeige durch 10 LEDs, abschaltbar.
Gehäusefarbe schwarz.

Halbleiterliste: nur einmal pro Typ.

Net weight (2.2 lb = 1 kg) 13.2 kg / 29 lb 1.2 oz (29.075 lb)
Price in first year of sale 1'398.00 DM
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
