Atelier CD4

Atelier CD4; Braun; Frankfurt (ID = 1479795) R-Player

Atelier CD4; Braun; Frankfurt (ID = 1484733) R-Player

Atelier CD4; Braun; Frankfurt (ID = 1484734) R-Player

Atelier CD4; Braun; Frankfurt (ID = 1484735) R-Player

Atelier CD4; Braun; Frankfurt (ID = 1484791) R-Player

Atelier CD4; Braun; Frankfurt (ID = 1484792) R-Player

Atelier CD4; Braun; Frankfurt (ID = 1484793) R-Player

Atelier CD4; Braun; Frankfurt (ID = 1484794) R-Player

Atelier CD4; Braun; Frankfurt (ID = 1484795) R-Player

Atelier CD4; Braun; Frankfurt (ID = 1484796) R-Player
Atelier CD4; Braun; Frankfurt (ID = 1772854) R-Player Atelier CD4; Braun; Frankfurt (ID = 1214793) R-Player
Atelier CD4; Braun; Frankfurt (ID = 1219888) R-Player Atelier CD4; Braun; Frankfurt (ID = 1335634) R-Player
Atelier CD4; Braun; Frankfurt (ID = 2011497) R-Player Atelier CD4; Braun; Frankfurt (ID = 2011498) R-Player
Atelier CD4; Braun; Frankfurt (ID = 2011499) R-Player Atelier CD4; Braun; Frankfurt (ID = 2011500) R-Player
Use red slider bar for more.

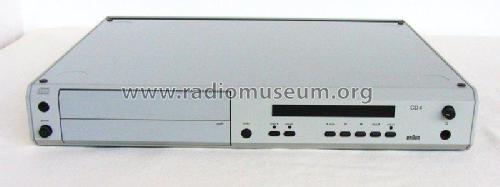

Atelier CD4; Braun; Frankfurt (ID = 1772854) R-Player
Braun; Frankfurt: Atelier CD4 [R-Player] ID = 1772854 933x327
Select picture or schematic to display from thumbnails on the right and click for download.
For model Atelier CD4, Braun; Frankfurt:
Ebay-Verk.: mahi1072, ArtNr.: 291348187946

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1986–1989 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details CD-Player, -Writer, MD, MOD (audio)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Atelier CD4 - Braun; Frankfurt
Material Metal case
Dimensions (WHD) 445 x 70 x 375 mm / 17.5 x 2.8 x 14.8 inch
Notes Aufwendige Filter, Wandler und Korrekturen für bestmögliche Wiedergabe, Programmierung von 16 Titeln, Vor- und Rücklauf in 2 Geschwindigkeiten (die langsamere zum Mithören). Grundfunktionen sind fernbedienbar.
Variante CD4² (CD4/2) produziert in 1989/1990.
Ausführung in schwarz oder kristallgrau.
Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Price in first year of sale 2'000.00 DEM
Source of data - - Manufacturers Literature

Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.



All listed radios etc. from Braun; Frankfurt
Here you find 1039 models, 905 with images and 644 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
