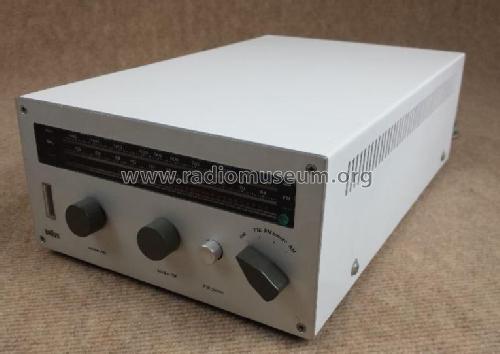

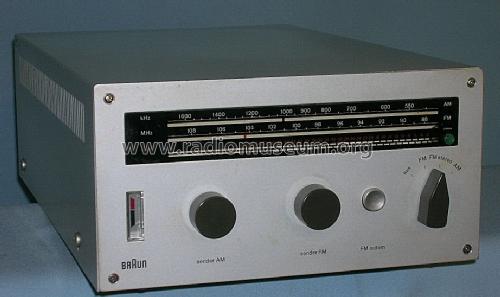

Braun; Frankfurt: CE16 [Radio] ID = 2245140 1357x729
Select picture or schematic to display from thumbnails on the right and click for download.

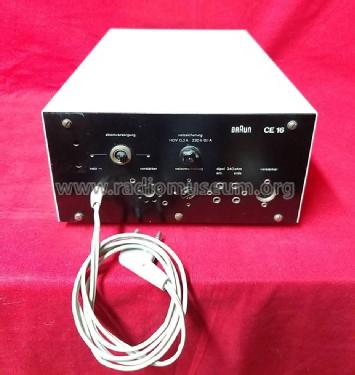

For model CE16, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1965–1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 17: AF106 AF121 AF124 AF125 AF126 AC127 AC151 AC151r AC152 BA110 AA113 AA116 BZY83
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 11 AM circuit(s)     14 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details Hi-Fi equipment

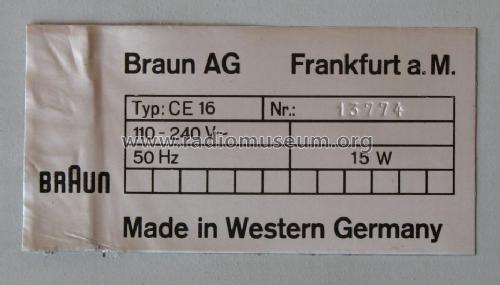

Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: CE16 - Braun; Frankfurt

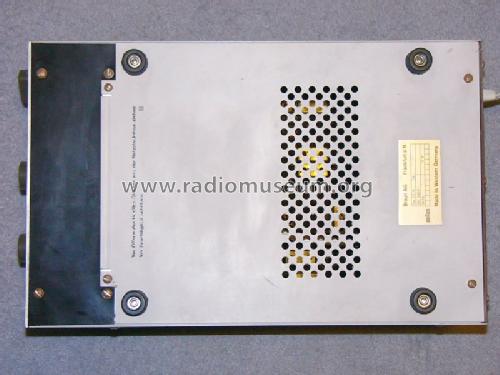

Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 200 x 100 x 320 mm / 7.9 x 3.9 x 12.6 inch
Notes

Braun Hi-Fi-Stereo-Empfangsteil CE 16.
Jeder Halbleitertyp nur 1× gelistet
17 Transistoren, 16 Dioden, ab 1966 18 Dioden (14  Ge-Dioden, 4 Si-Dioden)
Stereo-Decoder eingebaut; Abstimmanzeige durch Drehspulinstrument.

Wellenbereiche: UKW 87 – 108 MHz, MW  512 – 1640 kHz
Empfindlichkeit: 1,5 μV für 26 dB Rauschabstand

Gehäuse: Stahlblech, Frontplatte Aluminium
Abstimmung: Seilantrieb

Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Price in first year of sale 745.00 DM
External source of data erb
Mentioned in HdB d.Rdf-& Ferns-GrH 1965/66 (bis 1967/68)

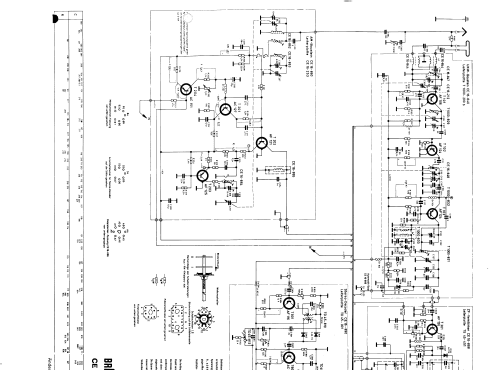

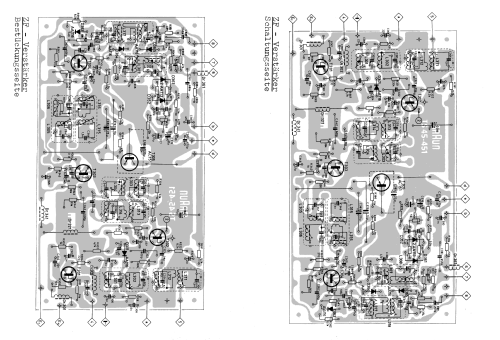

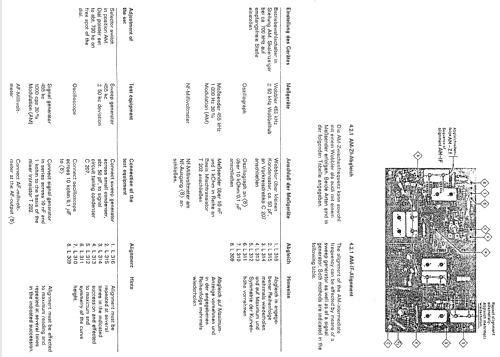

Literature/Schematics (1) -- Original-techn. papers.
