CE500K

CE500K; Braun; Frankfurt (ID = 1279182) Radio CE500K; Braun; Frankfurt (ID = 330721) Radio
CE500K; Braun; Frankfurt (ID = 1219338) Radio CE500K; Braun; Frankfurt (ID = 1219340) Radio
CE500K; Braun; Frankfurt (ID = 1219342) Radio CE500K; Braun; Frankfurt (ID = 1753510) Radio
Use red slider bar for more.
CE500K; Braun; Frankfurt (ID = 1279182) Radio

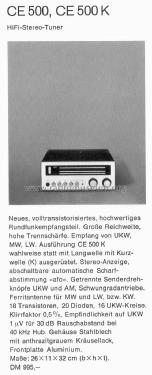

Braun; Frankfurt: CE500K [Radio] ID = 1279182 900x447
Select picture or schematic to display from thumbnails on the right and click for download.
For model CE500K, Braun; Frankfurt:
Ebay-Verk.: thedi-2008, ArtNr. 110914943054

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1967–1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 18:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 10 AM circuit(s)     16 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: CE500K - Braun; Frankfurt
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 260 x 110 x 320 mm / 10.2 x 4.3 x 12.6 inch
Notes
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Price in first year of sale 995.00 DM
External source of data erb
Source of data Handbuch VDRG 1967/1968


All listed radios etc. from Braun; Frankfurt
Here you find 1039 models, 905 with images and 644 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
