CE501 18 Trans.

CE501; Braun; Frankfurt (ID = 330968) Radio CE501; Braun; Frankfurt (ID = 941537) Radio

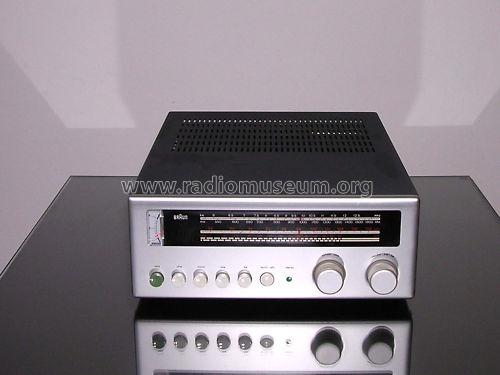

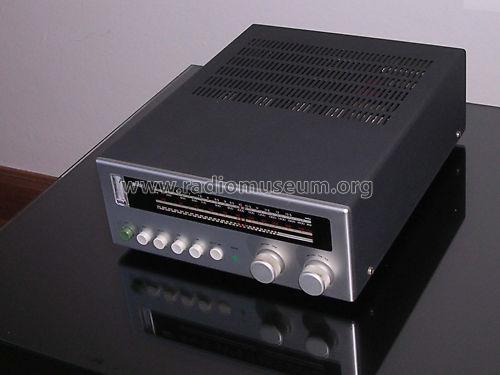

CE501; Braun; Frankfurt (ID = 941538) Radio CE501; Braun; Frankfurt (ID = 1753646) Radio
Use red slider bar for more.
CE501; Braun; Frankfurt (ID = 330968) Radio
Braun; Frankfurt: CE501 [Radio] ID = 330968 512x244
Select picture or schematic to display from thumbnails on the right and click for download.
For model CE501 18 Trans., Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1969/1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 18:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 10 AM circuit(s)     16 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: CE501 [18 Trans.] - Braun; Frankfurt
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 260 x 110 x 320 mm / 10.2 x 4.3 x 12.6 inch
Notes Hi-Stereo-Tuner. Abstimmanzeige mit Instrument.
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Price in first year of sale 998.00 DM
External source of data erb
Source of data Handbuch VDRG 1969/1970
