CSV1000/1; Braun; Frankfurt (ID = 1718804) Ampl/Mixer
Braun; Frankfurt: CSV1000/1 [Ampl/Mixer] ID = 1718804 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model CSV1000/1, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1970/1971 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 55:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 250 Volt
Loudspeaker - This model requires external speaker(s).

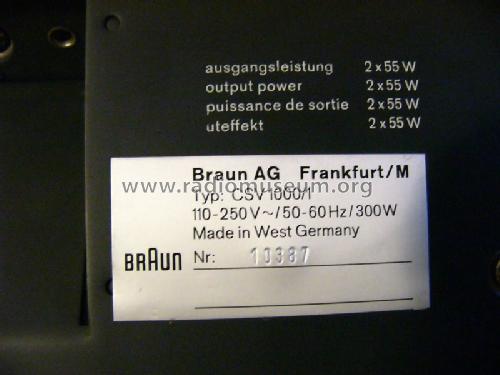

Power out
from Radiomuseum.org Model: CSV1000/1 - Braun; Frankfurt
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 400 x 110 x 335 mm / 15.7 x 4.3 x 13.2 inch
Notes Stereo-NF-Verstärker mit 2 Endstufen je 55 W (Sinus).
Net weight (2.2 lb = 1 kg) 15.4 kg / 33 lb 14.7 oz (33.921 lb)
Price in first year of sale 2'350.00 DM
External source of data Erb
Source of data Handbuch VDRG 1970/1971
