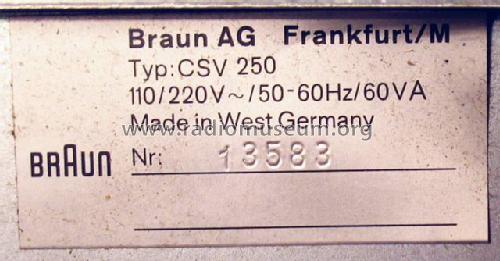

CSV250; Braun; Frankfurt (ID = 1122315) Ampl/Mixer CSV250; Braun; Frankfurt (ID = 1123192) Ampl/Mixer
CSV250; Braun; Frankfurt (ID = 1126740) Ampl/Mixer CSV250; Braun; Frankfurt (ID = 1126742) Ampl/Mixer
Use red slider bar for more.
CSV250; Braun; Frankfurt (ID = 1128038) Ampl/Mixer
Braun; Frankfurt: CSV250 [Ampl/Mixer] ID = 1128038 930x650
Select picture or schematic to display from thumbnails on the right and click for download.
For model CSV250, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1966–1968 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 24: BC179 AC151 BC178 BC172 BC108 BC119 AC153 AD131
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: CSV250 - Braun; Frankfurt
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 260 x 100 x 320 mm / 10.2 x 3.9 x 12.6 inch
Notes Stereo-NF-Verstärker mit 2 Endstufen je 15 W (Sinus). Transistoren: Phono-Vorverstärker:
2 x AC151
2 x BC179B
Vorverstärker:
8 x BC178A
Enstufe:
2 x BC172
2 x BC108
2 x BC119F
2 x AC153
4 x AD131
Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Price in first year of sale 698.00 DM
External source of data erb
Source of data Handbuch VDRG 1967/1968
