Exporter 2; Braun; Frankfurt (ID = 1627382) Radio

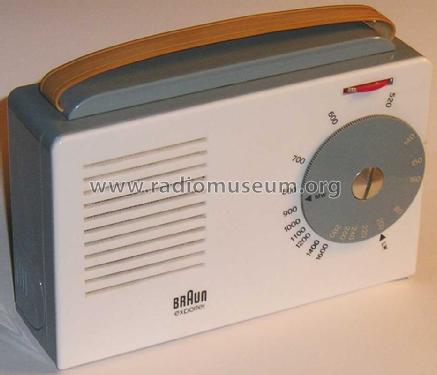

Braun; Frankfurt: Exporter 2 [Radio] ID = 1627382 933x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model Exporter 2, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1956–1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK96 DF96 DAF96 DL96
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 50 & 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.08 W (unknown quality)
from Radiomuseum.org Model: Exporter 2 - Braun; Frankfurt
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 175 x 120 x 50 mm / 6.9 x 4.7 x 2 inch
Notes

Produziert in den Gehäusefarben englischrot und graublau; Frontplatte weiss.

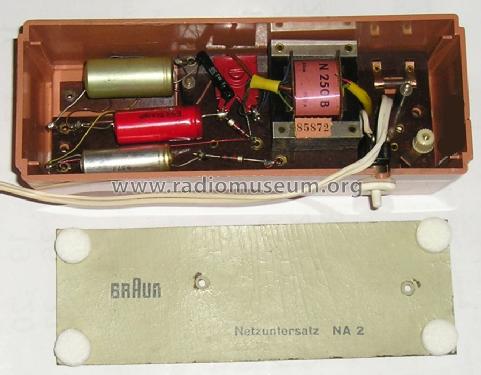

Typen-/Chassis-Nr KL 2; optionaler Gehäuseuntersatz (Netzteil) NA 2 für DM 29,50.

Passende Batterien: Pertrix 211 Mono (D) 1.5 V und Pertrix 49 Mikrodyn 50 V.

Lautsprechertyp: Isophon P6/12/10



Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)
Price in first year of sale 80.00 DM
Collectors' prices
Source of data HdB d.Rdf-& Ferns-GrH 1956/57 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 2
Mentioned in HdB d.Rdf-& Ferns-GrH 1958/59
