Geschlossene Standbox LS 200

Geschlossene Standbox LS 200; Braun; Frankfurt (ID = 1553313) Speaker-P
Geschlossene Standbox LS 200; Braun; Frankfurt (ID = 2363646) Speaker-P Geschlossene Standbox LS 200; Braun; Frankfurt (ID = 2363648) Speaker-P
Geschlossene Standbox LS 200; Braun; Frankfurt (ID = 2363650) Speaker-P Geschlossene Standbox LS 200; Braun; Frankfurt (ID = 1556568) Speaker-P
Geschlossene Standbox LS 200; Braun; Frankfurt (ID = 1952755) Speaker-P Geschlossene Standbox LS 200; Braun; Frankfurt (ID = 1952757) Speaker-P
Geschlossene Standbox LS 200; Braun; Frankfurt (ID = 2079049) Speaker-P
Use red slider bar for more.
Geschlossene Standbox LS 200; Braun; Frankfurt (ID = 2363646) Speaker-P
Braun; Frankfurt: Geschlossene Standbox LS 200 [Speaker-P] ID = 2363646 1200x1600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Geschlossene Standbox LS 200, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1986–1988 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Geschlossene Standbox LS 200 - Braun; Frankfurt
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 290 x 1200 x 360 mm / 11.4 x 47.2 x 14.2 inch
Notes

Technische Daten:

Bauart:

Geschlossene Stand-Box

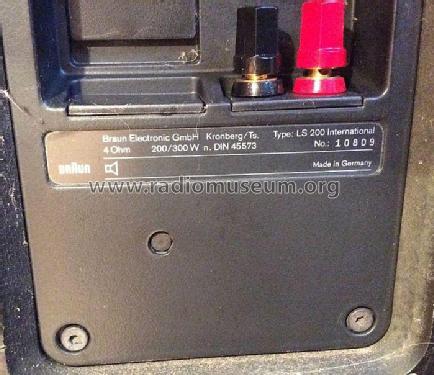

Nenn- / Musikbelastbarkeit: 200 / 300 W
Impedanz: 4 Ω
Frequenzbereich: 18 … 27.000 Hz

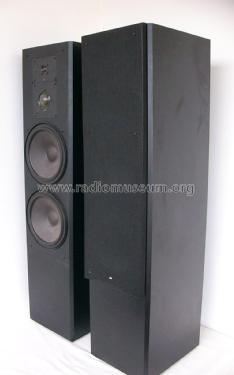

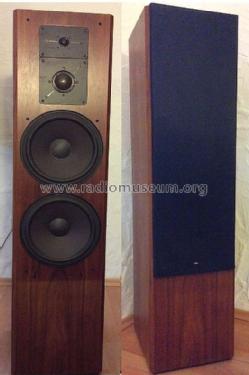

Lautsprecher-Systeme: 2x 250 mm dyn. Tieftonsystem
1x   50 mm Kalotten-Mitteltonsystem
1x   19 mm Kalotten-Hochtonsystem
Übergangsfrequenz: 450 / 4.500 Hz

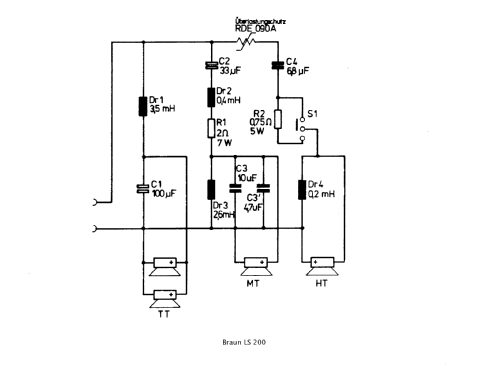

Frequenzweiche: 12 dB / Oktave
Gehäuse- / Gitterfarben: weiß/weiß, schwarz/schwarz, redwood



Net weight (2.2 lb = 1 kg) 45 kg / 99 lb 1.9 oz (99.119 lb)
Price in first year of sale 2'500.00 DM
Mentioned in - - Manufacturers Literature
Literature/Schematics (1) Braun 50 Jahre, B. Polster 2005, p.148
Literature/Schematics (2) Braun+Design Collection, Braun/Klatt 1995, p.48

Model page created by Eberhard Fuchs. See "Data change" for further contributors.
