L40

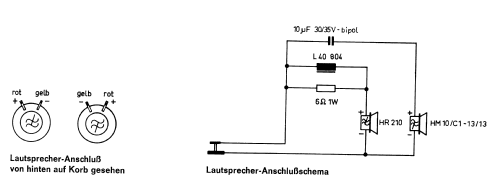

L40; Braun; Frankfurt (ID = 1172983) Speaker-P

L40; Braun; Frankfurt (ID = 1752927) Speaker-P

L40; Braun; Frankfurt (ID = 1870130) Speaker-P
L40; Braun; Frankfurt (ID = 57541) Speaker-P L40; Braun; Frankfurt (ID = 1589700) Speaker-P
L40; Braun; Frankfurt (ID = 1589701) Speaker-P L40; Braun; Frankfurt (ID = 1802454) Speaker-P
Use red slider bar for more.
L40; Braun; Frankfurt (ID = 57541) Speaker-P
Braun; Frankfurt: L40 [Speaker-P] ID = 57541 933x556
Select picture or schematic to display from thumbnails on the right and click for download.
For model L40, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1961–1967 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: L40 - Braun; Frankfurt
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 566 x 243 x 280 mm / 22.3 x 9.6 x 11 inch
Notes

2-Wege-Box mit 1 Tieftöner 210 mm, 1 Mittel-Hochtöner 100 mm.

Belastbarkeit: 6 (12) Watt
Impedanz: 4 - 6 Ohm
Frequenzbereich: 50 - 18000 Hz
Frequenzweiche: 6 dB / Oktave
Trennung: bei 2000 Hz
Präsenzanhebung: -6 dB zwischen 2000 - 10000Hz.
Volumen: 26 Liter

Geschlossenes, akustisch gedämpftes und resonanzfreies Holzgehäuse. Zunächst mit weissem Kunststoffüberzug, später auch in Nußbaum furnier oder Kunststoff graphitfarben.

Preise ab 1965/66 und 1966/67: DM 212,- in weiss, DM 225,- in Nussbaum natur

Price in first year of sale 185.00 DM
External source of data Otto Kippes
Source of data -- Original prospect or advert
Mentioned in Funk-Technik (FT) (15/1963, S. 549 / Werbeanzeige)
Literature/Schematics (1) Handbuch RFP 1961/62
Literature/Schematics (2) Handbuch VDRG 1962/1963
Literature/Schematics (3) Handbuch VDRG 1963/1964
Literature/Schematics (4) Handbuch VDRG 1964/1965 (und 1965/66, 1966/67)

Model page created by Iven Müller. See "Data change" for further contributors.
