LS120

LS120; Braun; Frankfurt (ID = 1645932) Speaker-P
LS120; Braun; Frankfurt (ID = 561601) Speaker-P
Use red slider bar for more.
LS120; Braun; Frankfurt (ID = 561601) Speaker-P

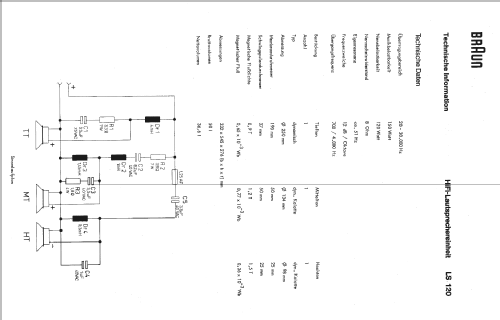

Braun; Frankfurt: LS120 [Speaker-P] ID = 561601 439x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model LS120, Braun; Frankfurt:
Original prospekt.

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1982–1986 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: LS120 - Braun; Frankfurt
Material Various materials
Dimensions (WHD) 332 x 545 x 276 mm / 13.1 x 21.5 x 10.9 inch
Notes

3-Weg-HiFi-Regal- oder Standbox mit 120 Watt Sinus an 8 Ohm. Übertragungsbereich 20-30000 Hz.
Bestückung: Konus-TT 250mm, Kalotten-MT 50mm, Kalotten-HT 25mm. Frequenzweiche (12dB/Okt.) Übergänge bei 700/4000 Hz.
Gehäuseausführung in Schwarz oder Nussbaum natur. Ab 1983 auch in weiß gegen Aufpreis lieferbar. 1983 auch in weiß lieferbar.

Price in first year of sale 775.00 DM
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
