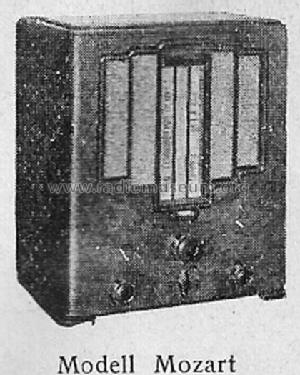

Mozart W1979

Mozart W1979; Braun; Frankfurt (ID = 273389) Radio

Mozart W1979; Braun; Frankfurt (ID = 914071) Radio
Mozart W1979; Braun; Frankfurt (ID = 50928) Radio Mozart W1979; Braun; Frankfurt (ID = 50929) Radio
Mozart W1979; Braun; Frankfurt (ID = 1502701) Radio Mozart W1979; Braun; Frankfurt (ID = 1723197) Radio
Use red slider bar for more.
Mozart W1979; Braun; Frankfurt (ID = 50928) Radio
Braun; Frankfurt: Mozart W1979 [Radio] ID = 50928 630x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mozart W1979, Braun; Frankfurt:
Unrestaurierter Zustand

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RENS1284 RENS1284 RES374 RGN564
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Mozart W1979 - Braun; Frankfurt
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 380 x 445 x 260 mm / 15 x 17.5 x 10.2 inch
Notes Frequentit
Price in first year of sale 180.00 RM +
Source of data Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from Braun; Frankfurt
Here you find 1039 models, 903 with images and 640 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
