• Year
  • 1980/1981
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 143163

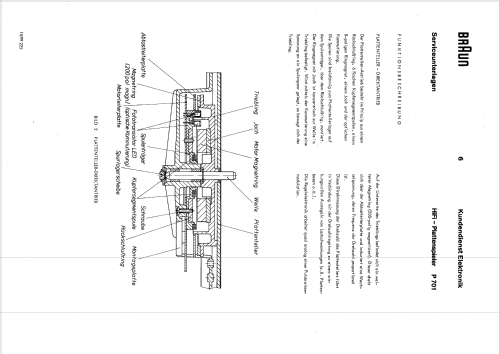

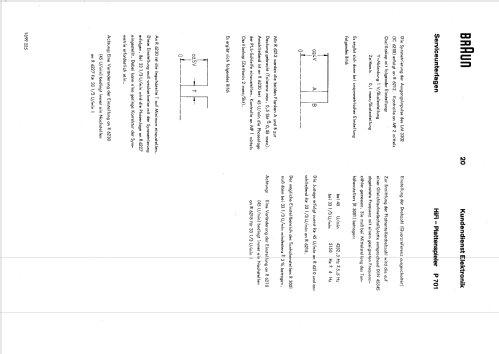

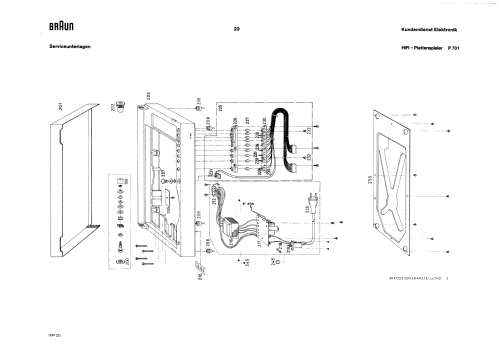

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: P701 - Braun; Frankfurt
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 500 x 110 x 335 mm / 19.7 x 4.3 x 13.2 inch
  • Notes
  • HiFi-Plattenspieler mit quarzgesteuertem Direktantrieb, 2 Geschwindigkeiten (33 und 45 Upm). Moving-Coil-System: Braun mc 1-E. Übertragungsbereich 15-50000 Hz.
    Plattenteller 290mm Messing 1.8 kg.
    Gehäusefarbe Schwarz, Abdeckhaube getönt, abnehmbar.
  • Net weight (2.2 lb = 1 kg)
  • 8.7 kg / 19 lb 2.6 oz (19.163 lb)
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
