Super Piccolo 50a

• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1299

• Picture
• Schematics

Previous Next

Previous Next

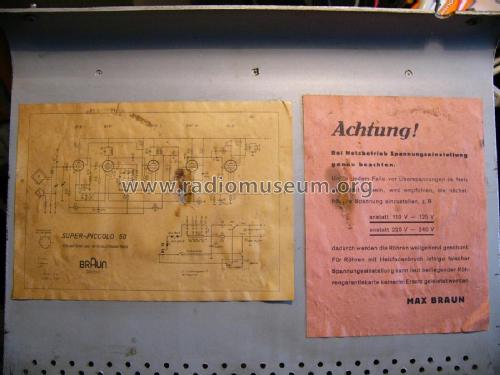

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• DF91 DK40 DF91 DAF91 DL41

• Main principle
• Superhet with RF-stage; ZF/IF 468 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Line / Batteries (any type) / 110-240 / 90/9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Super Piccolo 50a - Braun; Frankfurt

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 320 x 260 x 140 mm / 12.6 x 10.2 x 5.5 inch

• Notes
• Wellenschalter vorne rechts; keine Stabantenne! Siehe auch P50a mit anderen Röhren. Was sind die Unterschiede und wann genau die Herstellung? Ich nehme nicht an , das beide zugleich ...

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Price in first year of sale
• 239.00 DM

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange Schaltungen der Funkindustrie, Buch 2
